CPAP BIPAP

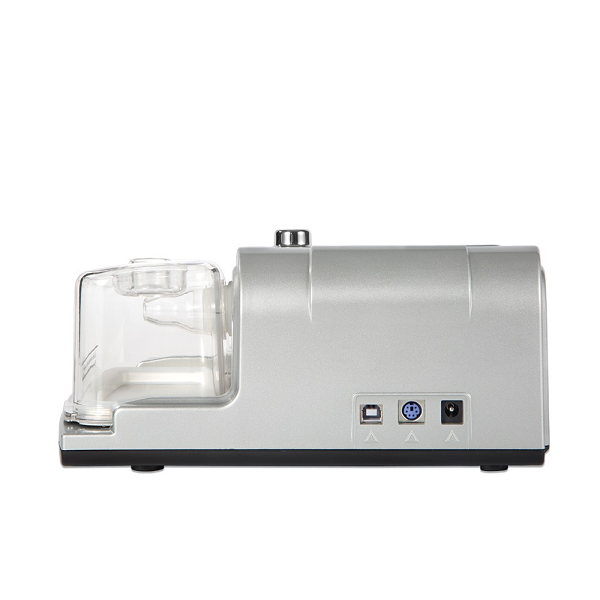

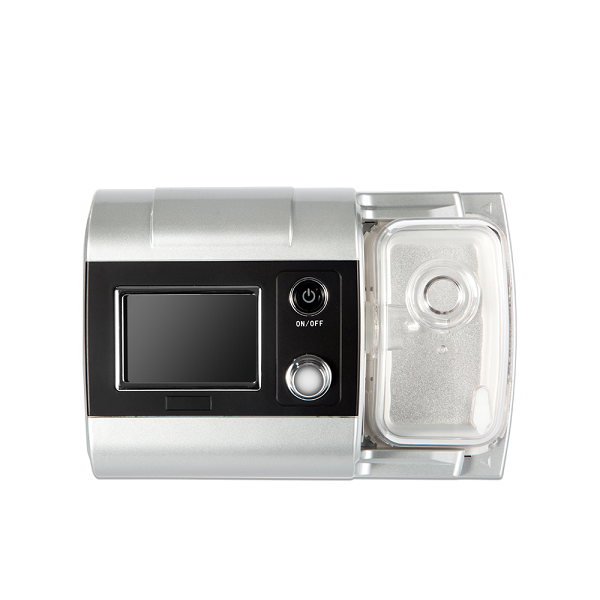

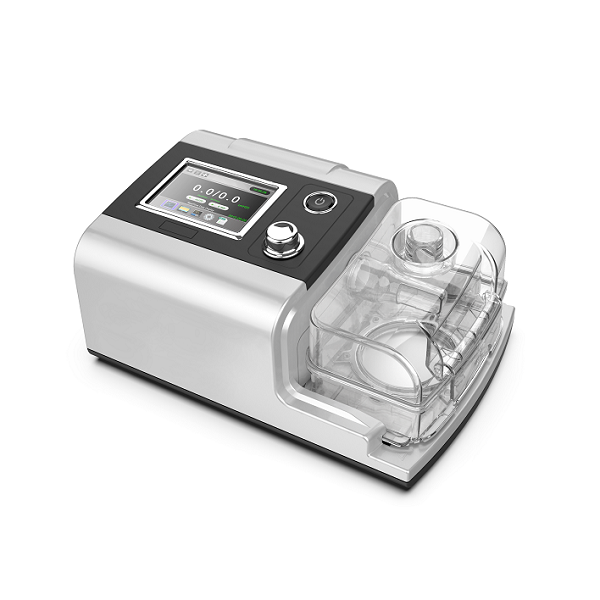

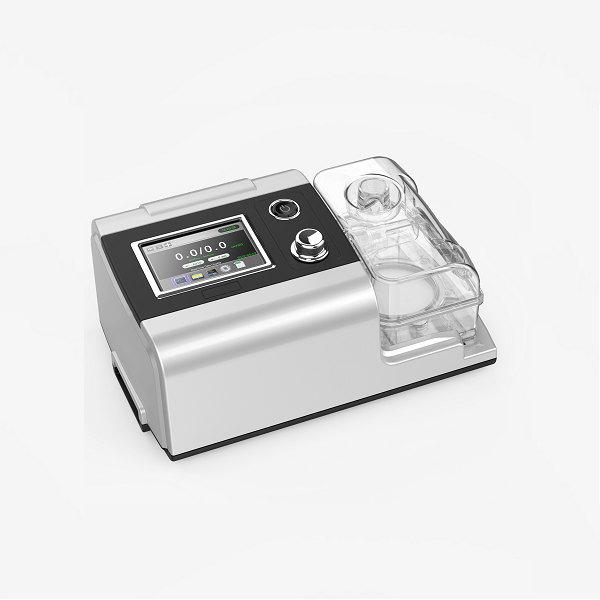

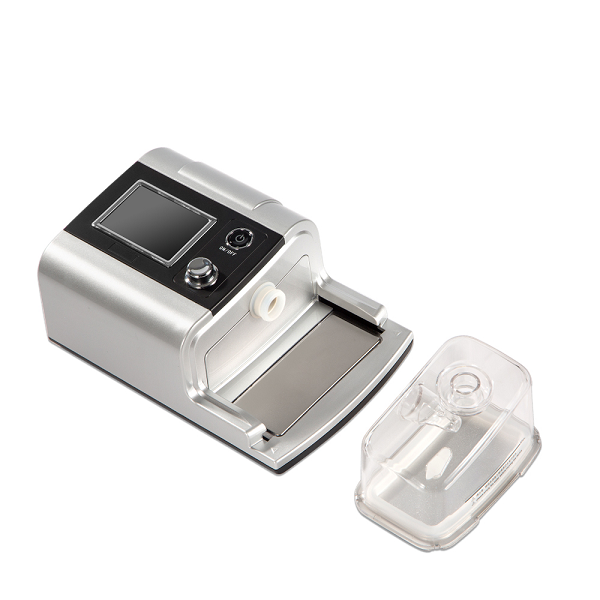

M541 BIPAP

Brand: Medshine
Model No.: M541
Certificate: CE,ISO
Warranty:12 months
Product description: Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD (chronic obstructive pulmonary disease), Motor neurons.
INQUIRY

M541 BIPAP

Features:

1.For home care or clinical use.

2.Parental Humidifier, easy to monitor the water level.

3.Four working modes: CPAP,S,T,S/T to meet different requirement.

4.FDA standard filter: anti-blocking and dusty-prevent

5.Match with standard hose φ22cm

Scope of application：

Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD (chronic obstructive pulmonary disease), Motor neurons.

Specifications:

Difference	M541
Work mode	CPAP,S/T,S,T
Screen	3.5’’ color TFT
Pressure	4-25cmH2O
Inspiration Pressure	4-25cmH2O
Expiration Pressure	4-25cmH2O
Inspiration sensitivity	Auto,1-6 level
Expiration sensitivity	Auto,1-6 level
Accuracy	±0.5cmH20
Belex	1-3 level (2-4cm H2O), makes the expiration more comfortable
Ramp	0-60min
Islop	1-6 level (100ms~600ms)
BPM	3-40bpm
Inspiration time	0.5-3.0s
Noise	<30dB
Auto on/off	Auto off while tube/mask off, Auto on when it detects breath
Leakage compensation	Yes
Altitude compensation	Yes
Humidifier	0-5 level
Parameter monitor	IPAP/EPAP/BPM/VT/MV/LK/I:E/WM
Real time Alarm	Power failure
Data download	USB to PC
Self-diagnostic questionnaire	Yes, makes patient understand the potential breathing apnoea by himself.
Net Weight/size	1.8kg, 255170112mm (Host+Humidifier)
Gross Weight/size	3.6KG, 420380200mm
Warranty	2 years
Packing sheet	Handbag	1
	Host	1
	Humidifier	1
	Full face Mask	1
	headgear	1
	Power adapter	1
	Filter	2
	Oxygen connector	1
	Φ22 tubing	1
	Manual	1
