CPAP BIPAP

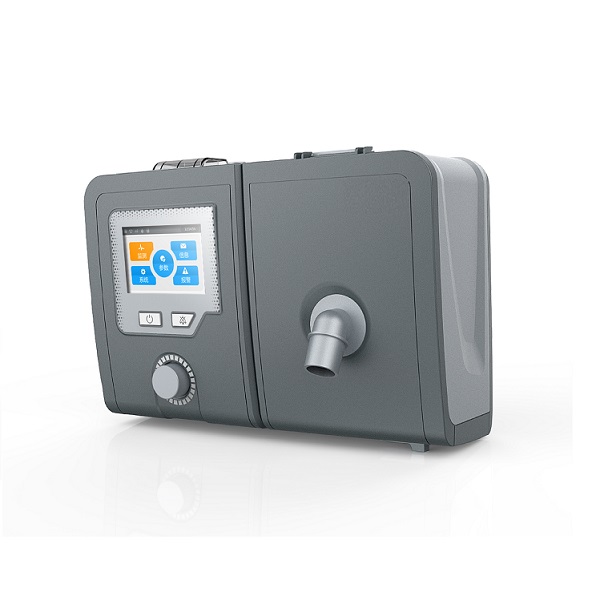

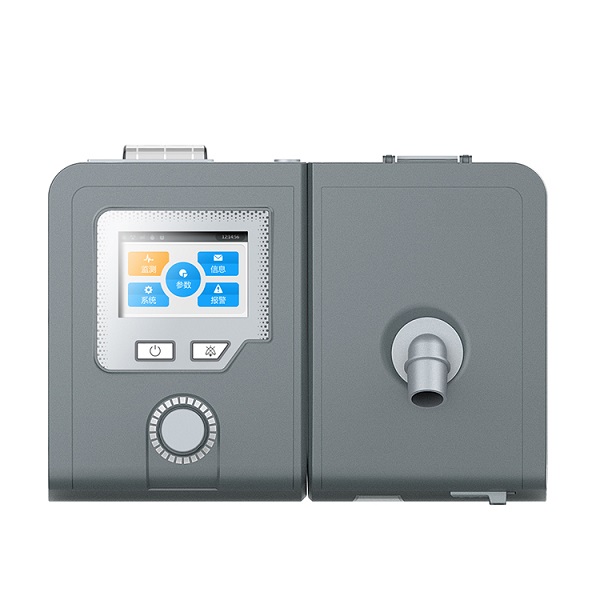

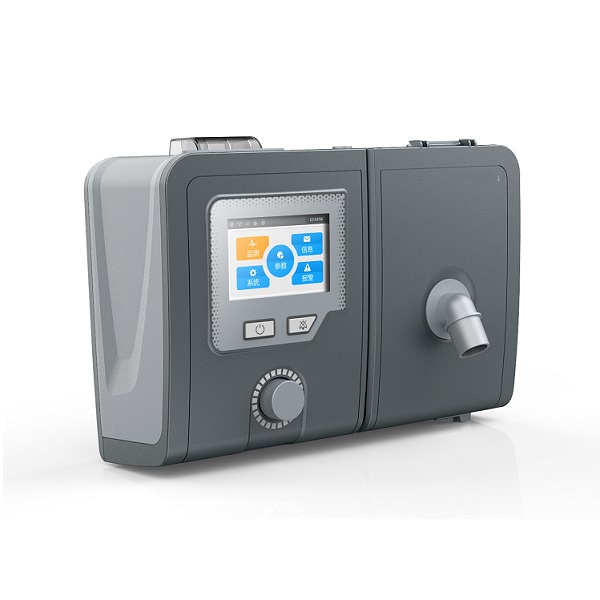

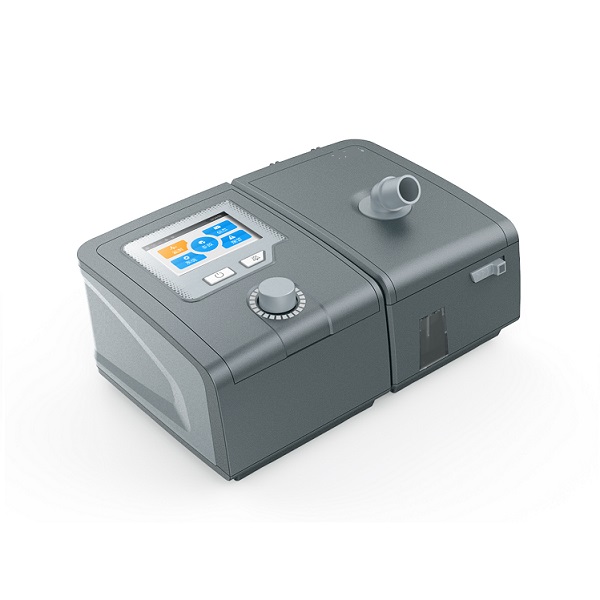

M542 Non Invasive Ventilator

Brand: Medshine
Model No.: M542
Certificate: CE,ISO
Warranty:12 months
Product description: Used for assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD(chronic obstructive pulmonary disease),Motor neurons.
INQUIRY

M542 Non Invasive Ventilator/BPAP

Features:

1.Four work modes: CPAP,S,T,S/T,APCV.

2.APCV mode: Assist pressure control ventilation

3.Dynamically monitor the treatment effect

4.Real-time alarm in case of failure

5.Light weight: 2.0kg

Scope of application：

Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD(chronic obstructive pulmonary disease),Motor neurons.

Specification

Model	B-25T
Screen	3.5 Inch color TFT
Work mode	CPAP,S/T,S,T
Inspiration Pressure	4-25cmH2O
Inspiration sensitivity	Auto,1-6 level
Expiration Pressure	4-23cmH2O
Inspiration sensitivity	Auto,1-6 level
VAF function	No
Accuracy	±0.5cmH20
Belex	1-3 level (2-4cm H2O), makes the expiration more comfortable
Ramp	0-60min
Islop	1-6 Level
BPM	3-40bpm
Inspiration time	0.5-4.0s
Noise	<30dB
Auto on/off	Auto off while tube/mask off, Auto on when it detects breath
Leakage compensation	Yes
Altitude compensation	Yes
SPO2	Yes
Humidifier	0-5 level,water chamber separable
Parameter monitor	Flow/Press/BPM/VT/MV/LK/InspT/SpO2(Optional)/PR(Optional)
Realtime Alarm	Power failure/Low voltage/Airway Block/Low MV/High Leakage/humidifier failure/TF card full/High Pressure/Low Pressure/Replace Filter
Data download	TF Card 8G
Self-diagnostic questionnaire(Epworth)	Yes, makes patient understand the potential breathing apnoea by himself.
Net Weight/size	2.2kg, 280200112mm(Host+humidifier)
Gross Weight/size	4.6KG,375290235mm (Host+Humidifier+Handbag+Mask,Tube,Power adapter,Filter,Extension connector)
Warranty	2 years
