Endoscopy System

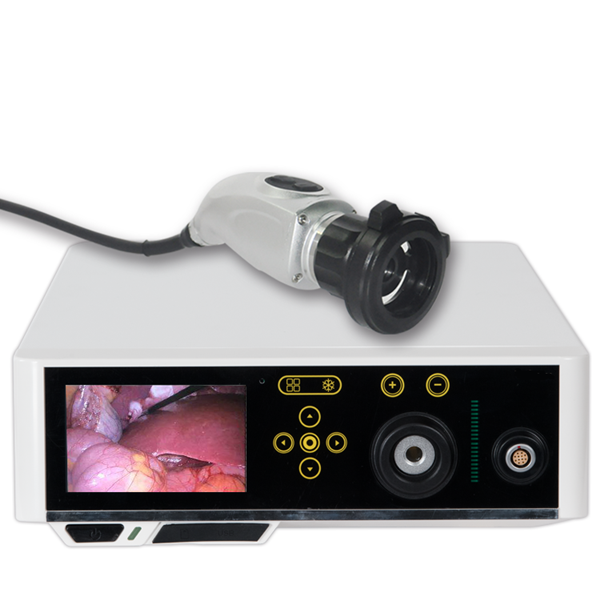

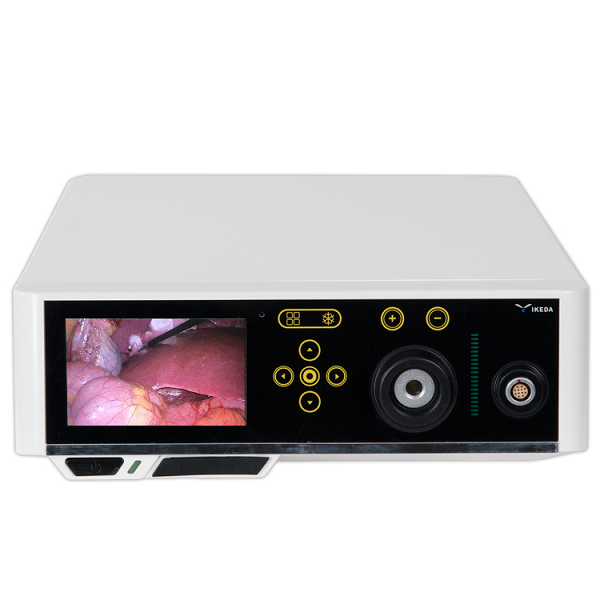

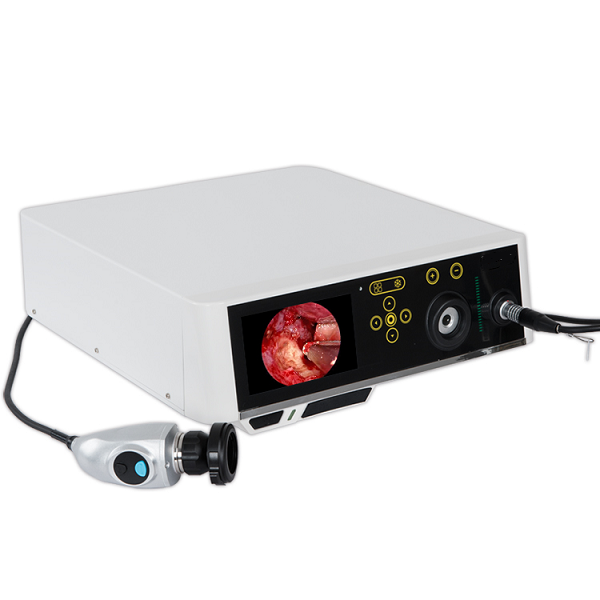

M402 HD Endoscope Camera

Brand: Medshine
Model No.: M402
Certificate: CE,ISO
Warranty:18 months
Product description: An endoscope is an illuminated optical, typically slender and tubular instrument (a type of borescope) used to look deep into the body and used in procedures called an endoscopy. It is used to examine
INQUIRY

Brief Instruction:

1/ Integrated ENT camera endoscope combines HD camera, 80W LED cold light source and 5inch screen as a endoscope camera set.

2/ The camera could be used for all fields in Hospital and Clinics, such as ENT, Orthopedics, Neurosurgery, Urology, Gynecology, Plastic Surgery etc...

3/ The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope...

4/ The camera is fit for both diganosis and surgeries...have good performance.

Features and Specifications:

1) 1/2.8inch SONY CMOS HD camera

2) Built-in 80W LED cold light source

3) 5inch LCD screen

4) Could connect to large monitor (21''/22'/24''/26'' ect)

5) Could record HD video by connecting with HD recording box

6) Connect to Workstation(Software & Capture) to capture image, record video and print patient report

Model	M402 endoscopy camera
Camera	1/2.8 inch Full HD SONY CMOS HD camera (Single Chip)
Image Size	1920x1080P
Scanning System	Progressive scanning
Pixels	2,100,000 Pixels
Resolution	1080 Lines
LED Light Source	80W, Grade 20 Strong, Light Source Intensity over 400,000 LUX
Video Output	HDMI, CVBS
Video Recording	Record HD Video by Connecting Additional HD Recording Box
White Balance	AWB & MWB
Camera Control	WB & Image Freeze
