CPAP BIPAP

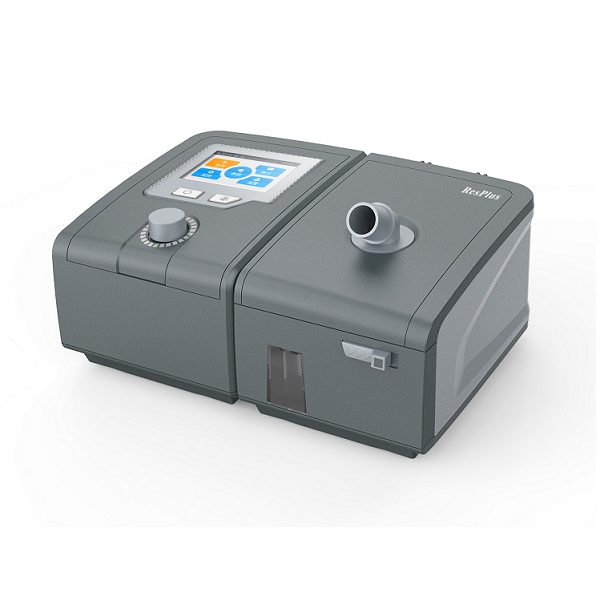

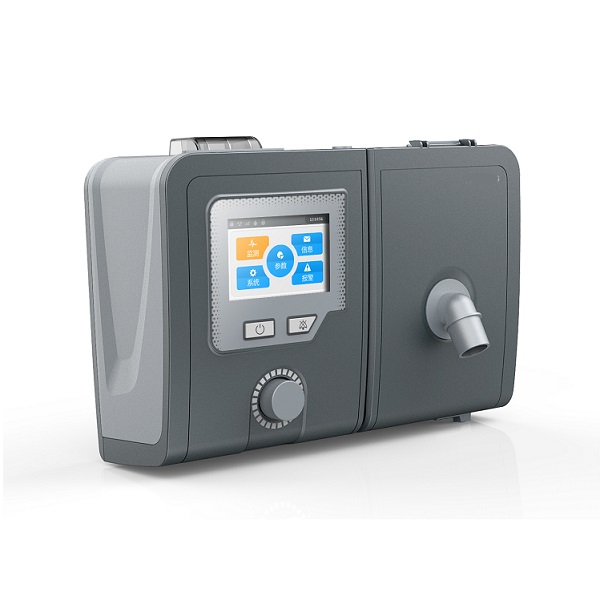

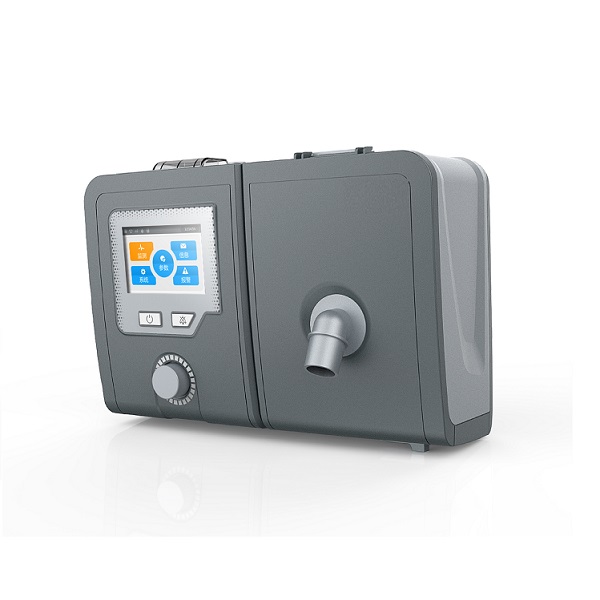

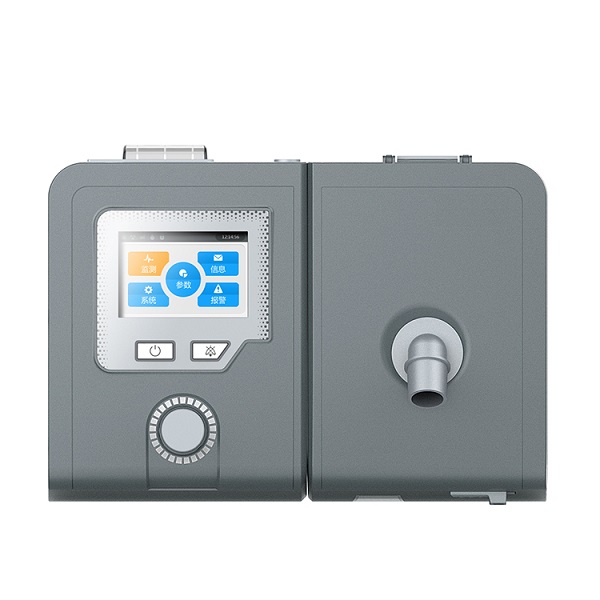

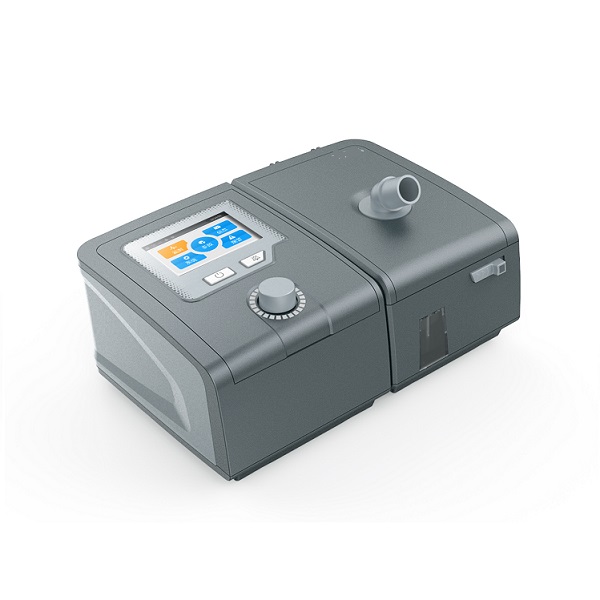

M543 Non Invasive Ventilator / BPAP

Brand: Medshine
Model No.: M543
Certificate: CE,ISO
Warranty:12 months
Product description: Used for Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD(chronic obstructive pulmonary disease),Motor neurons.
INQUIRY

M543 Non Invasive Ventilator / BPAP

Features:

1.Four work modes: CPAP,S,T,S/T,APCV.

2.APCV mode: Assist pressure control ventilation

3.Dynamically monitor the treatment effect

4.Real-time alarm in case of failure

5.Light weight: 2.0kg

Scope of application：

Assistant therapy of respiratory disease,PHD(Pulmonary heart disease),COPD(chronic obstructive pulmonary disease),Motor neurons.

Specifications:

Difference	M543
Screen	3.5 Inch color TFT
Work mode	CPAP,S/T,S,T,APCV
Inspiration Pressure	4-30cmH2O
Inspiration sensitivity	Auto,1-6 level
Expiration Pressure	4-25cmH2O
Inspiration sensitivity	Auto,1-6 level
VAF function	Yes, Tidal Volume 50~2000ml
Accuracy	±0.5cmH20
Belex	1-3 level (2-4cm H2O), makes the expiration more comfortable
Ramp	0-60min
Islop	1-6 Level
BPM	3-40bpm
Inspiration time	0.5-4.0s
Noise	<30dB
Auto on/off	Auto off while tube/mask off, Auto on when it detects breath
Leakage compensation	Yes
Altitude compensation	Yes
SPO2	Yes
Humidifier	0-5 level,water chamber separable
Parameter monitor	Flow/Press/BPM/VT/MV/LK/InspT/SpO2(Optional)/PR(Optional)
Realtime Alarm	Power failure/Low voltage/Airway Block/Low MV/High Leakage/humidifier failure/TF card full/High Pressure/Low Pressure/Replace Filter
Data download	TF Card 8G
Self-diagnostic questionnaire(Epworth)	Yes, makes patient understand the potential breathing apnoea by himself.
Net Weight/size	2.2kg, 280200112mm(Host+humidifier)
Gross Weight/size	4.6KG,375290235mm
Warranty	2 years
Packing sheet	handbag	1
	Host	1
	Humidifier	1
	Full face Mask	1
	Power adapter	1
	Filter	2
	Extension connector	1
	Φ22 Tubing	1
	8G SD Card	1
