Syringe Pump

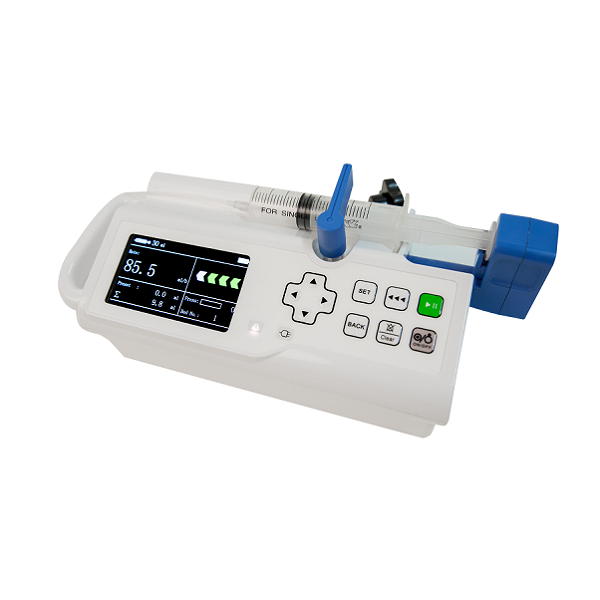

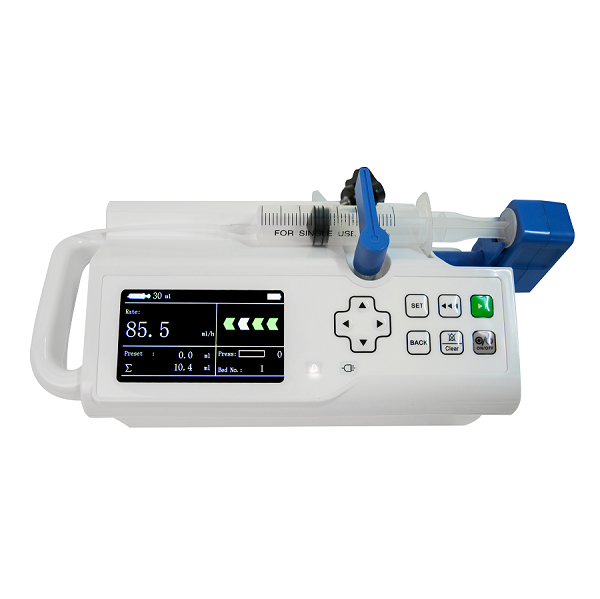

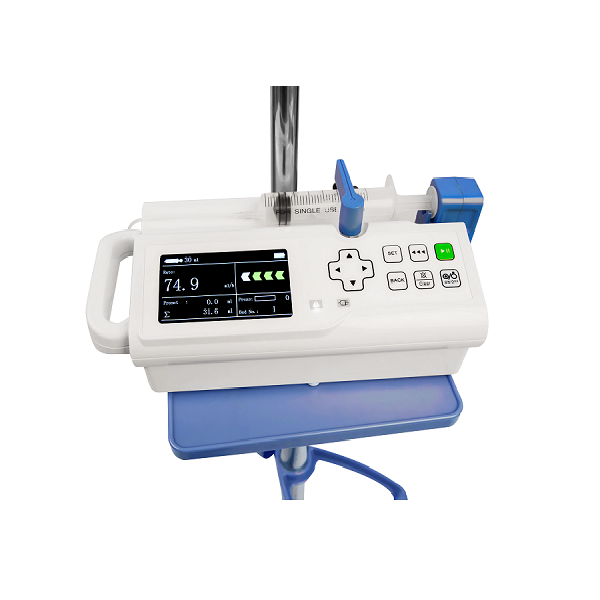

M640 Single Channel Syringe Pump

Brand: Medshine
Model No.: M640
Certificate: CE,ISO
Warranty:12 months
Product description: A syringe pump is a pump used to deliver precise and accurate amounts of fluid in high-impact research environments ranging in fields from chemistry to neuroscience.
INQUIRY

M640 Single Channel Syringe Pump

Features:

1.Compatible with universal standard syringe of 5,10,20,30,50(60)ml

2.High accuracy of ±2% after correct calibration

3.Automatically detect the syringe size

4.Three working modes: Rate Mode, Time Mode, Body-weight Mode

5.Drug library with more than 25 drug names inside pumps

6.4 hours continuous work when battery fully-charged

7.Purge/ bolus function, adjustable bolus rate while pump is infusing

8.Large 4.3 inch color screen, long-distance visibility

9.DPS dynamic pressure display, with three levels of occlusion: Low, Middle, High

10.Visible and audible alarm function to safeguard the infusion

11.KVO function: When finish the total volume of an infusion, the pump will alarm and enter KVO state.

Technical Specifications of Syringe Pump M640

PARAMETER	SPECIFICATION
Applicable syringes	5ml, 10ml, 20ml, 30ml, 50ml, 60ml of any standard syringes
Accuracy	±2% with correct calibration
Rate Mode	50(60)ml syringe: 0.1-1500.0ml/h (0.1ml/h step) 30ml syringe: 0.1-600.0ml/h (0.1ml/h step) 20ml syringe: 0.1-400.0ml/h (0.1ml/h step) 10ml syringe: 0.1-200.0ml/h (0.1ml/h step) 5ml (2/3ml) syringe: 0.1-100.0ml/h (0.1ml/h step)
Time Mode	SOL.VOL:0.1-999.9ml (0.1 ml step) Time:1-2000min (1 min step)
Preset Time Range:	0-99 hour, 59 minutes
Body Weight Mode	Volume: 0.1-999.9ml(0.1ml step) Drug Mass: 0.1-999.9mg (0.1mg step) Dose: 0.001-9999.9ug/kg/min(0.01ug/kg/min step) (Unit: ug/kg/min, mg/kg/h) Weight: 0.1-300KG(0.1kg the least step)
Total Volume Range	0.1-9999.9ml
Target Volume Range	0.1-9999.9ml
Purge/Bolus Rate	50ml(60ml): 400-1500.0ml/h 30ml: 400-600.0ml/h, 20ml:400ml/h 10ml: 200ml/h, 5ml: 100 ml/h Programmable and adjustable
KVO Rate	0.1~5.0 ml/h or the last delivery rate when it is smaller
Occlusion pressure	Three level setting LOW, MEDIUM & HIGH
Alarms	Near empty, Empty, Occlusion, Over, Syringe Disengaged, Low battery, Wrong parameter, device failures.
Bolus Volume	Range:1.0-50.0ml, Increment:0.1ml
History Records	(Optional Function)
Drug Names	More than 70 drug names contains Penicillin, Vancomycin, Pitocin, Insulin etc (Optional Function)
Power source	AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; Built-in Lithium Battery: Rechargeable, 7.4V, 3000mAh. 4 hours of continuous operation when infusing at 25 ml/h
Max Power Consumption	25 VA
Accessories:	AC power cable, Operational manual
Protection Class	Class II, Type BF,IPX4
Dimension /N.W	300mm139mm100mm , 1.7kg
