Infusion Pump

M650 Infusion Pump

Brand: Medshine
Model No.: M650
Certificate: CE,ISO
Warranty:12 months
Product description: An infusion pump is a medical device that delivers fluids, such as nutrients and medications, into a patient's body in controlled amounts. Infusion pumps are in widespread use in clinical settings suc
INQUIRY

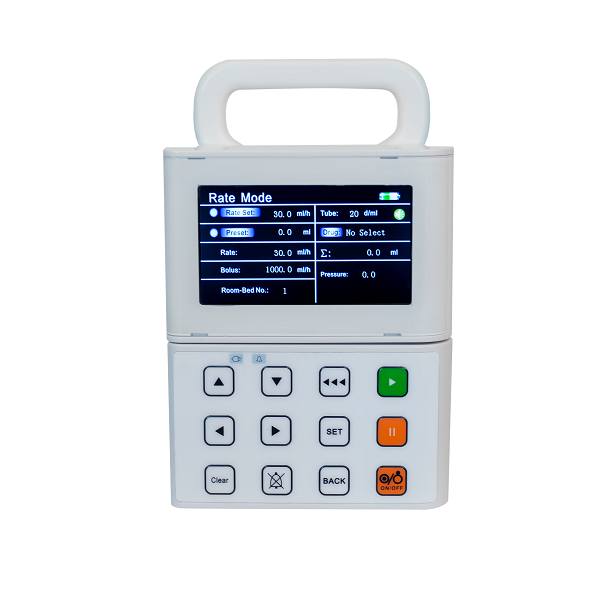

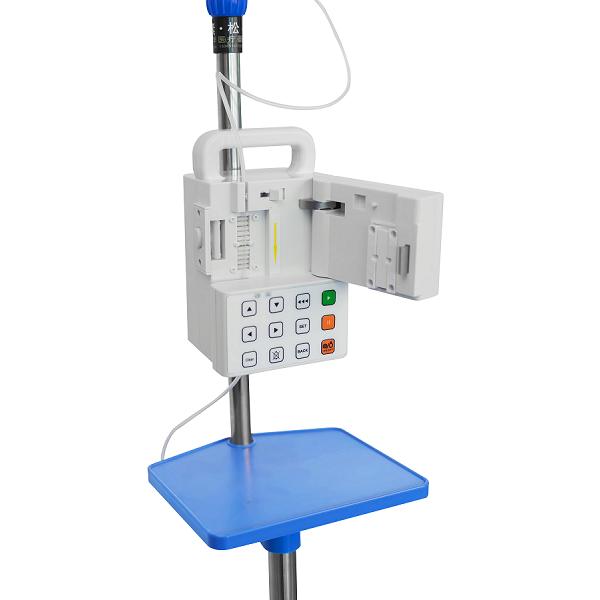

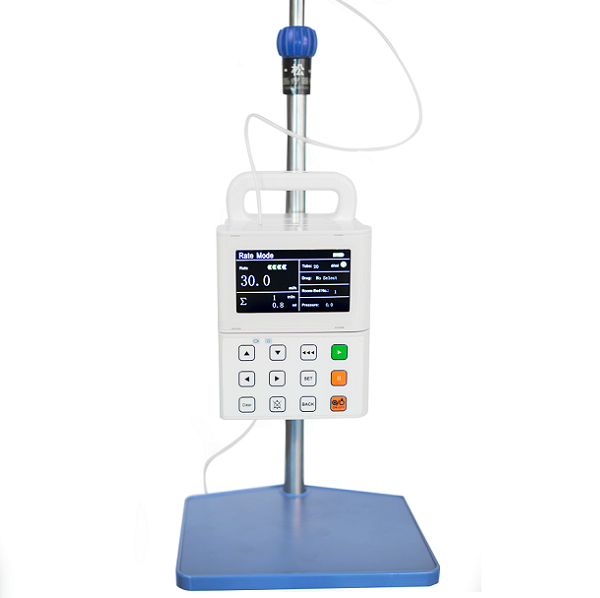

M650 Infusion Pump

Features:

1.Compatible with any brand of standard IV Set

2.Automatic calibration IV set, automatically recognize IV set of any brand

3.Large 4.3 inch color screen, long-distance visibility

4.Four working modes: Rate Mode, Time Mode, Drip Mode, Body-weight Mode

5.Switch Drop/min and ml/h freely

6.4 hours continuous work when battery fully-charged

7.Purge/ bolus function, adjustable bolus rate while pump is infusing

8.DPS dynamic pressure display, with three levels of occlusion: Low, Middle, High

9.KVO function: When finish the total volume of an infusion, the pump will alarm and enter KVO state.

10.With optional heating-up function

Technical Specifications

PARAMETER	SPECIFICATION
Control Way	By step motor rotary speed working on the IV tube to adjusting the delivery rate automatically
Fit IV tubes	Standard 20d/ml,60d/ml and other tubes, as well as brown tubes
Pump Type	Peristaltic finger pump
Accuracy	±3% after the correct calibration
Delivery rate	0.1~1200ml/hr (0.1ml/h per step; ) 1~400 drop/min
Delivery time range	1-9999min (1min step) or 0~99 hour, 59minutes
Volume limit range(Time Mode)	0.1~999.9 ml (1 ml step)
Target volume range:	0-9999.9ml (1 ml step)
Accumulated Volume Range	0-9999.9ml (1 ml step)
Body weight mode:	Body weight: 0.1~300KG, Drug limit:0.1~999.9 mg, Volume range: 0.1~999.9ml Dose:0.1~9999.9mg Unit: mg/kg/h, ug/kg/min
Drug names:	More than 70 drug names Such as Penicillin, Vancomycin, Pitocin, Insulin Heparin etc.
Purge Rate	1000 ml/h
KVO Rate	0.1~5.0 ml/hr, adjustable KVO
Occlusion pressure	Three level setting LOW, MEDIUM or HIGH Occlusion value:39.2kPa~137.2kPa, adjustable
Alarms	Occlusion, air, empty, near empty, over, low battery, door open, wrong parameter setting ect.
Bolus function	Bolus rate:0.1-1200ml/h
Power source	AC power supply: AC 100 to 240V( +/-10%)，50/60Hz; Built-in Lithium Battery: Rechargeable,7.4V. 4 hours continuous work when infusion at 25ml/h
Accessories:	AC power line, Operational manual
Protection Class	Class II, Type BF,IPX4
Dimension /Net weight	125mm140mm205mm , 1.7kg
