Syringe Pump

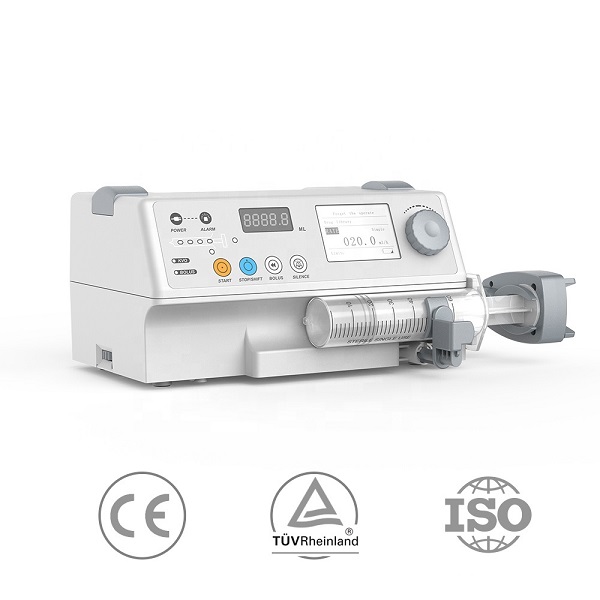

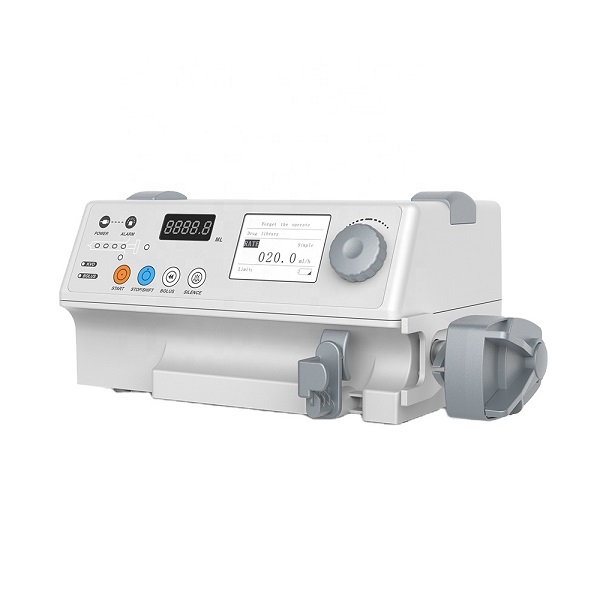

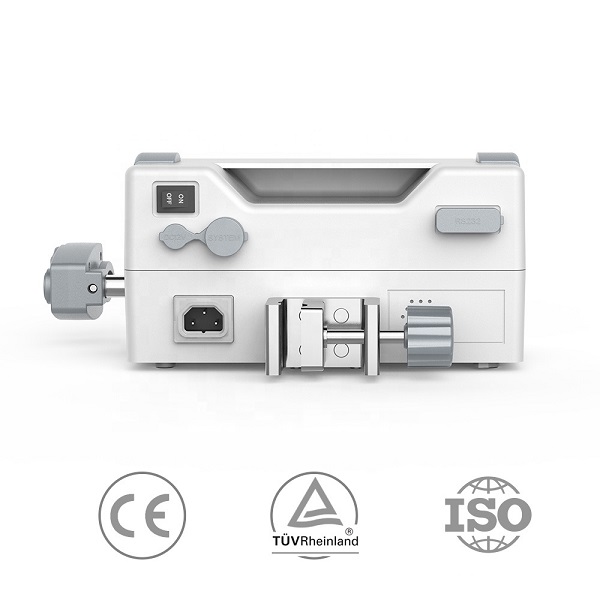

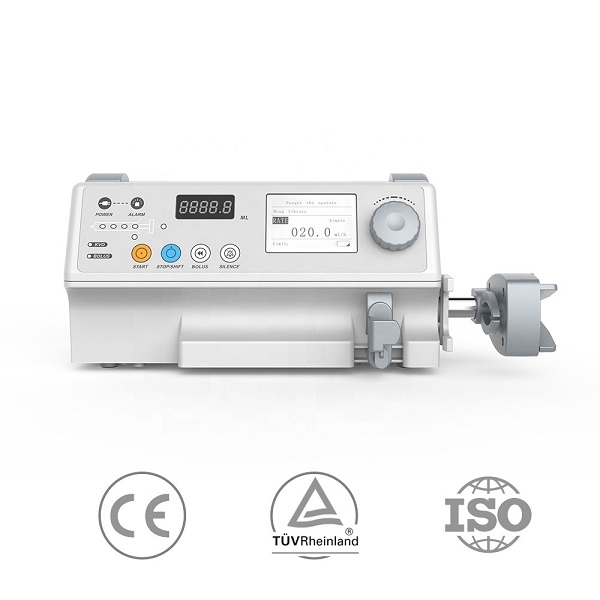

M641 Single Channel Syringe Pump

Brand: Medshine
Model No.: M641
Certificate: CE,ISO
Warranty:18 months
Product description: Syringe Pump is used for traditional intravenous, anesthetic, anticoagulant injection and chemotherapy for patients. It can also be applied in ICU and CCU etc
INQUIRY

M641 Single Channel Syringe Pump

Features of Single Channel Syringe Pump

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;

3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;

4. Preset solution volume to greatly reduce the workload of nurses;

5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;

6. Three levels of occlusion: high, medium and low;

7. Purge and Bolus function;

8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);

9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;

10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;

11. One-key operation makes setup easy and simple;

12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;

13. Automatically record the settings of last injection;

14.M101 can store 2000pcs of injection records and it has a drug library;

15. OEM is available.

Specification of Single Channel Syringe Pump

Unique Human Voice Alarm system	The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Rate:	50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) 1,000ml/h ~ 1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step)
Flow Rate Accuracy	Within ±3% (after correct calibration)
Mechanical precision	Within ±2%
Bolus Rate	50/60ml Syringe: 1,200ml/h 30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h
Purge Rate	50/60ml Syringe: 1,500ml/h 30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h
Volume Limit	0.1ml ~ 9999.9ml (0.1ml step)
Total Injection Volume	0.1ml ~ 9999.9ml (0.1ml step)
Occlusion of Single Channel Syringe Pump	High: 800mmHg ±200mmHg (106.7kPa±26.7kPa) Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa) Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Alarms	Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source	AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate	1ml/h
Fuse	F1AL/250/60V, 2pcs inside
Power Consumption	30VA
IP Classification	IPX4
Equipment Classification	Class II, internal power supply, Type CF
Operating Condition	Ambient temperature: +5℃~ +40℃
Relative humidity	20 ~ 90%
Transport & Storage Condition	Ambient temperature:-30℃~ +55℃
Relative humidity	≤95%
Dimension	280mm (L) ×210mm(W) ×130mm(H)
Weight	2.2kg (net weight)
