3in1 palm doppler ultrasound 64 Channel 192 Elements

3in1 palm doppler ultrasound 64 Channel 192 Elements

• Scan mode: Electronic Array, Electronic Convex & Linear array scanning

• Frequency:  Convex/Phasedarray probe 3.2/5.0MHz, Linear probe 7.5/10MHz

• Elements: 192 elements

• Channels: 64 channels

• Scanning Depth: Convex 90-305mm, Linear 20/40/60/100mm, adjustable

• Scan angle and width: convex 45°, phasedarray 60°,  linear width 40mm

• Screen: iOS/Android/Windows screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

• Image Adjustment: gain, focus, reverse pulse harmonics, noise reduction

• Puncture Auxiliary Function: In-Plane puncture guide, Out-Plane puncture guide, automatic vascular measurement function

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: jpg, MP4, png, DCM, store on mobile phones, Tablet PC

• Measure: distance, area, obstetrics and other

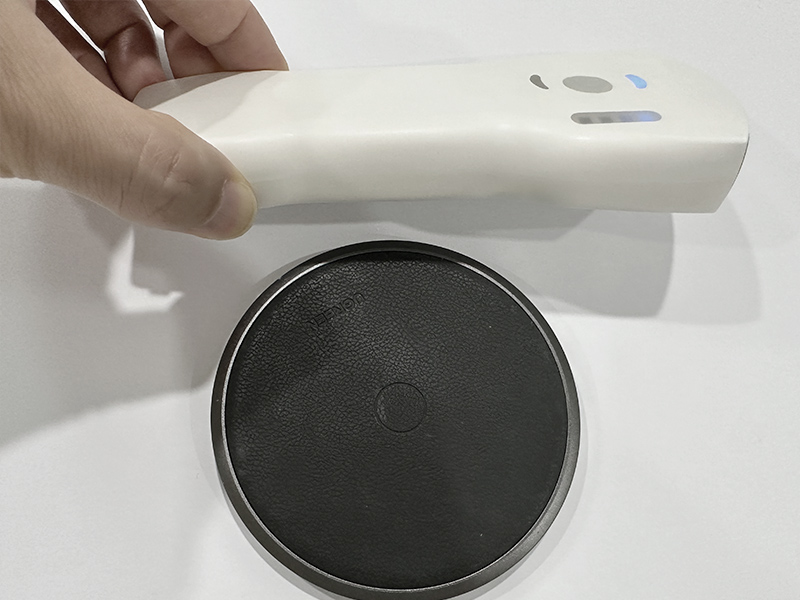

• Power: by built-in lithium battery, 2800mAh, wireless charging can extend the working time indefinitely

• Playback : manual and automatic, playback frames to be 100/200/500/1000

• WiFi Type : 802.11n/2.4G/5G dual-band 450Mbps

• Battery working time: 2 hours,

• Size: 156mm×60mm×20mm

• Net Weight: 250 gram
