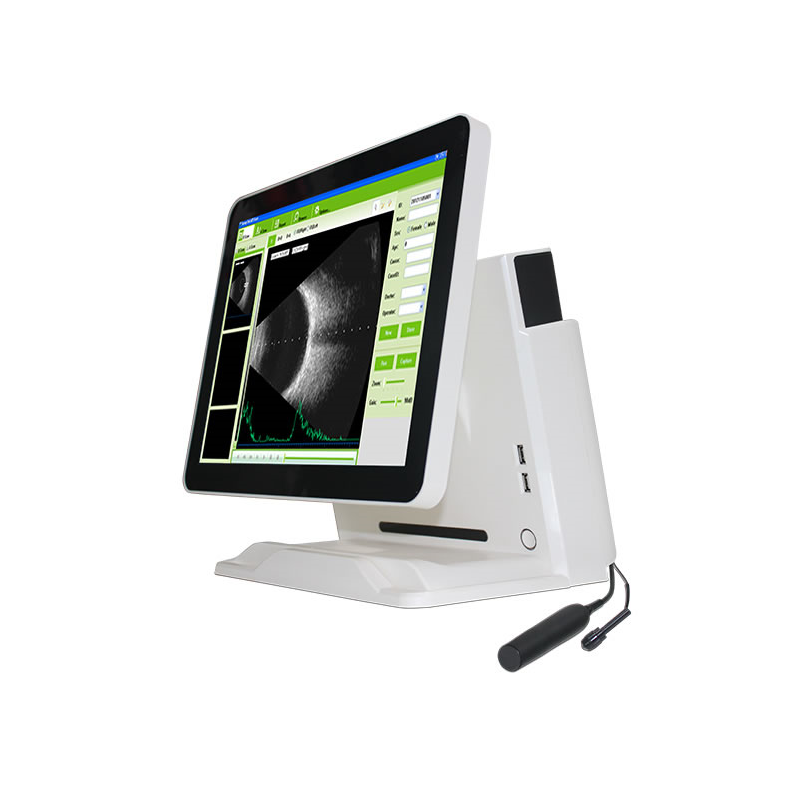

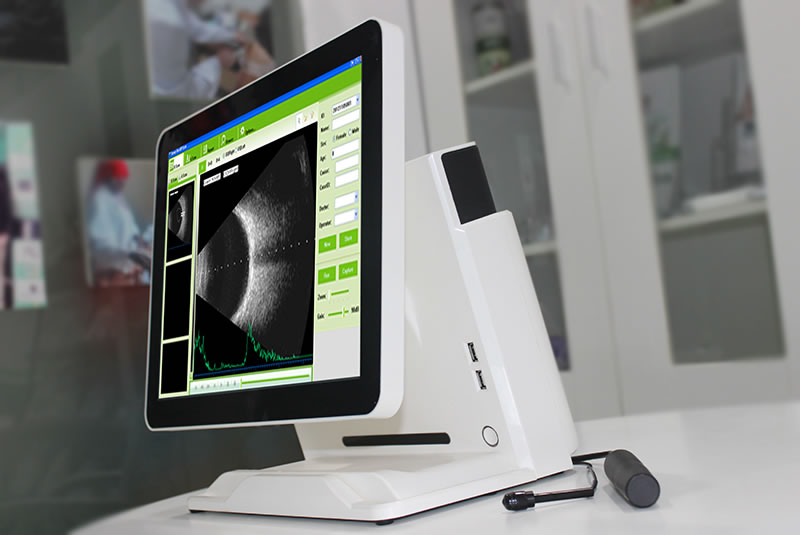

M500 Ophthalmic A/B Scanner

M500 Ophthalmic A/B Scanner

B scan:

Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless

Scanning Mode: Sector Scanning

Magnify：Multi continuous magnification,Real-Time magnification

Resolution: Lateral ≤0.3mm; Vertical≤0.2mm

Geometry position precision: Lateral ≤10%; Vertical≤5%

Depth:60mm

Enhance the part of vitreous body  and retina

Gain of probe：30dB-105dB

Scanning Angle:53°

Gray Scale: 256

False Color: Multi colors. OCT

measurement type: multigroup distances, perimeters and areas

Image postprocessing: multiple curves processing, Pseudo-color processing curve

Movies: 100 images movie review, AVI JPG format image output

A scan:

Frequency:10MHz,  with LED

Depth: 40mm

Precision:±0.05 mm

Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average

Eye mode: Phakic / Aphakic / Dense / Various IOL

IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS

Stat. Calculation: Average and standard deviation

Store: 10 Scanning results for each eye

Others:

Display Mode :B, B+B, B+A, A

Hint: preset keyword

Case Search：Multi-keywords

Screen: 15 inch LCD

Built-in battery: can use 4 hours
