Mitsubishi Video Printer

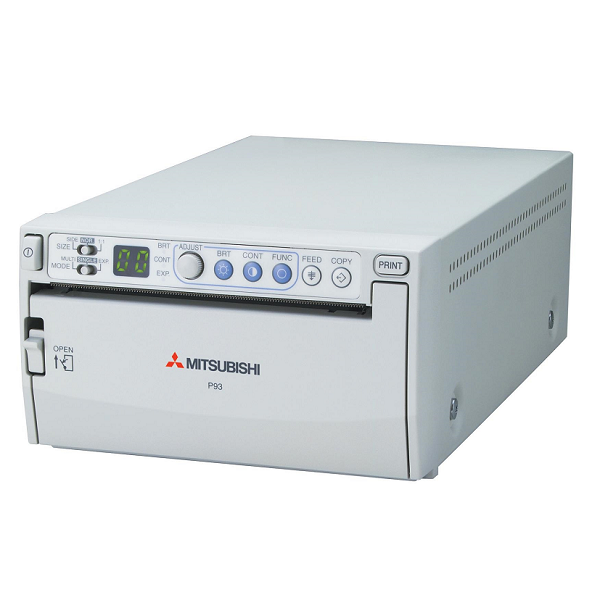

Mitsubishi Video Printer P93W-Z

Descriptions:

It is black and white ultrasound scanner video image printer.

Applications: Mainly used for ultrasound scanner image output.

Features:

High-speed printing;

High stability;

High-density print head and thermal paper matched to reproduce detailed images;

High precision and appropriate size of print options;

Front-button easy to operation;

Mitsubishi unique large area, easy to read LED digital display;

A variety of image size can be easily set by user;

Widely used in medical diagnosis.

Specifications:

Printing Method: Direct thermal printing;

Thermal Head: Thin film thermal head(1280dots);

Gradations: True 256 gray balance;

Resolution: 325 DPI;

Printed Picture Size: 4"(W) x 12 5/8"(H);

Effective Pixels: EIA 1280 dot x 508 lines; CCIR: 1280 dot x 608 lines

Memory: 10 frames

Input/Output: Video In: BNC, CCIR or EIA composite video signal, 1.0

Vp-p, 75 ohms/ high impedance selectable

Video Out: BNC, Loop-through or E to E selectable

Print Speed: Approximately 3.3seconds (High Speed Mode)

Remote Terminal: Stereo Mini-jack

Power Requirements: 100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide)

Dimensions (WHD): 154× 89.5× 256mm(W× H× D)

Weight: 2.8kg

Safety Standards: UL60950-1 Listed CSA C22.2 No. 60950-1 UL60601-1 Listed CSA No. 60601-1

Supplied Accessories: AC Power Cord

Operation Manual (CD ROM)

Thermal Head Cleaning Sheet

BNC Video Connecting Cable

K65HM High Gloss Paper (1 Roll)

Media (not included): K65HM High Gloss Paper

K91HG High Density Paper

K61B Standard Paper
