Ultrasound Printer Sony UP-X898MD

Ultrasound Printer Sony UP-X898MD

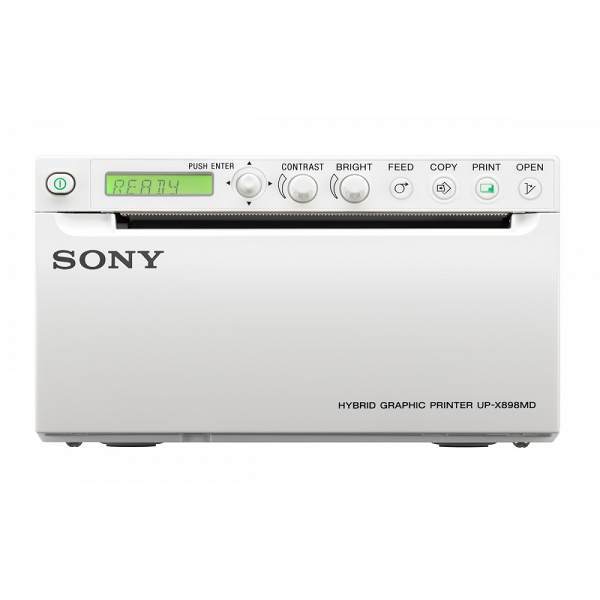

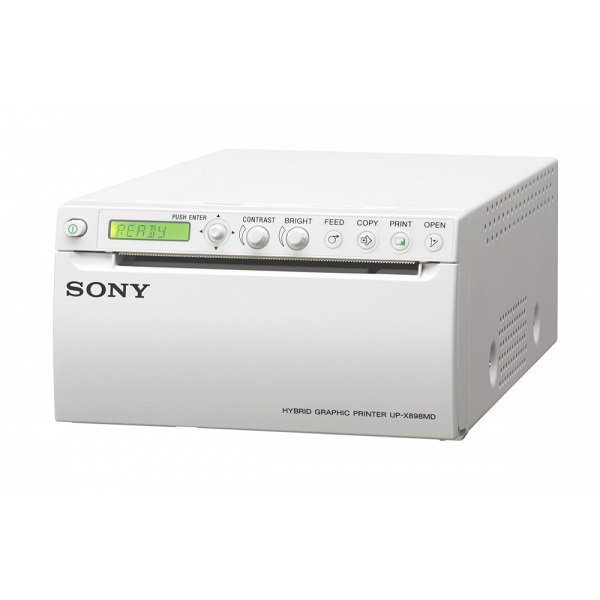

UP-X898MD is the successor to the popular UP-897 series of medical printers from Sony. Redesigned and upgraded, it not only offers several operational and ergonomic enhancements, but also retains a space-saving, compact design that is still easy to integrate into a medical cart. The magnified LCD panel and joystick provide intuitive menu navigation for added ease of use.

Advantages

Advantage 1: Equipped with a roll of printing paper

Advantage 2: One machine has two kinds of BNC and USB interface

Advantage 3: USB External memory read;Support computer network printing

Application: B ultrasonic, C - arm X - ray machine, medical equipment etc.

Packing: 24cm×35cm×22cm; 5 KG; Paper Carton

Standard In line with the United States and Canada European standards, there is IEC60601-1 certification

Print paper 1.9 seconds to print out the A6 thermal sensitive photographic paper(110S,110HG,110HD)

Specifications

Technical Data sheet

Paper size Paper width: 110mm(4 3/8inch)

Printing time

High Speed: About 1.9s/image ; Normal speed mode: about 3.3s/picture

Image internal storage

digit: 4096 X 1280×8

video: 10 frame memory(850 KX 8/frame)

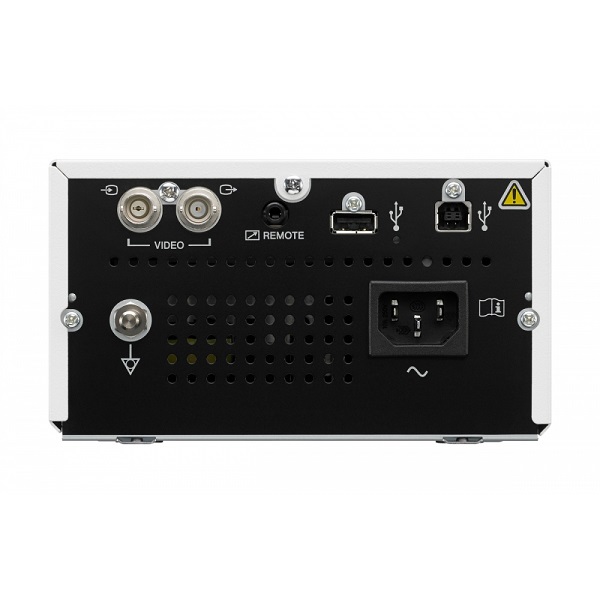

Interface: be suitable for USB

High Speed USB(USB 2.0) (X1)

Video Input: BNC stype(X1) , NTSC or PAL composite video signal

1.0 Vp-p , 75Ohm(NTSC / PALautomatic identification)

video output: BNC stype(X1)

long-distance: Stereo mini jack(X1)

Printer driver software Microsoft Windows XP 32/64 Vista 32 / 64,7 32 / 64,8 32/64

Power Requirments AC 100volt~240volt, 50/60Hz

Input current 1.3 A~0.6 A

Operating temperature: 5℃~40° C(41° F~104° F)

Operating humidity 20%~80%(no condensation)
