M240 Ultrasound Bone Densitometer

M240 Ultrasound Bone Densitometer

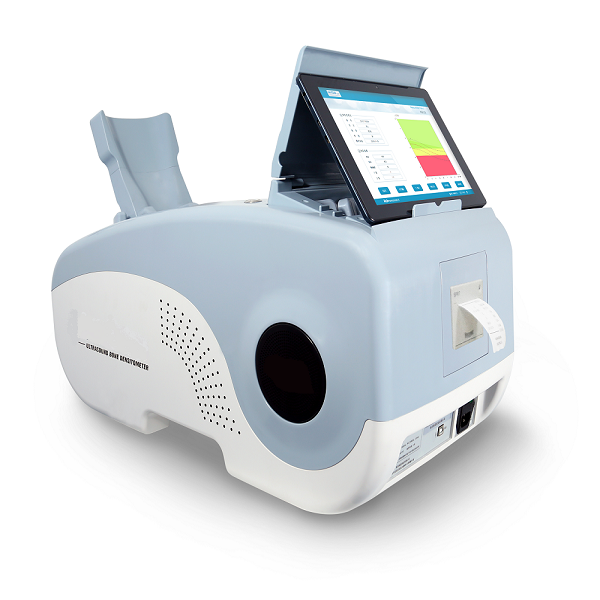

M230 is a calcaneus ultrasonic bone densitometer with built-in computer hardware system and high-speed thermal printer. It can be used with external devices such as monitors and keyboards. The shape of the instrument is dynamic and beautiful. The product adopts oil bladder probe, which has good comfort and automatic telescopic positioning. The test result is accurate and stable. It adopts a new generation of hardware technology, the software interface design is more beautiful, the operation is more convenient and easy to learn, and has a better user experience.

Scope of application:

This product is suitable for various medical and physical examination institutions and can be used for screening and diagnosis of osteoporosis in children, adults and middle-aged and elderly people.

Product parameters:

Measuring site: heel bone

Measurement method: full dry, two-way ultrasonic transmission and reception

Ultrasonic parameters: BUA, SOS, OI

Probe frequency: 0.5MHZ±10%

Measurement time: ≤25s

Ultrasonic probe diameter: 31.75mm

Operating system: WindowsXP/ 7 / 8 / 10

Operating temperature: 10-30 ° C

Use humidity: 30-70% relative humidity

Power requirements: AC220V ± 10%, 50HZ

Host size: 645*330*360mm

Host weight: 13kg

Application field

Ultrasound technology is safe and reliable, harmless to health, suitable for children and pregnant women

Provide comprehensive bone information, accurately diagnose osteoporosis, and more effectively assess bone status

Calcaneal examination for comprehensive bone assessment

·Adult osteoporosis diagnosis and fracture risk assessment

·Healthy, sub-health population examination osteoporosis screening

·Clinical investigation of regional or specific population bone status

·Children's growth bone monitoring assessment and height prediction

·Efficacy testing and evaluation of osteoporosis drugs

·Evaluation of bone effects by certain drugs, and medium and long-term bone test

Features

More precise

According to the patient's foot size, equipped with different auxiliary feet

The probe adopts air pressure adjustment and automatic telescopic positioning to detect data more accurately.

More convenient

Removable foot pedal for easy cleaning and handling.

Interchangeable leggings and foot support for adult and child monitoring

More economics

The special oil bladder can be used permanently without replacement during the life of the product.

Use low-cost consumables (plain or thermal paper, ultrasonic couplant and cleaning paper)

More safer

Ultrasound measurement has no radiation to the human body, suitable for children, pregnant women and the elderly.

Multiple tests are harmless to the human body, no need for protection, and can be used in general wards.
