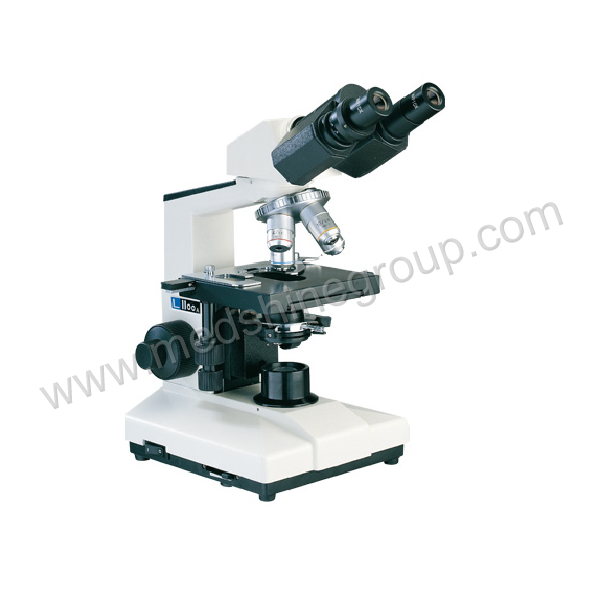

M152 Biological Microscope

Brand: Medshine
Model No.: M152
Certificate: CE,ISO
Warranty:12 months
Product description: Biological microscope M152 is a basic optical microscope equipped with plan achromatic objective and wide field eyepiece. It is quite popular for teachers and students to achieve interactive teaching
INQUIRY

Biological microscope M152 is a basic optical microscope equipped with plan achromatic objective and wide field eyepiece. It is quite popular for teachers and students to achieve interactive teaching on biology science. The biological microscope is widely used in the fields of biology, agriculture and it is an ideal instrument for education departments.

Specification

Eyepiece	Wide field WF10X(Φ18mm)

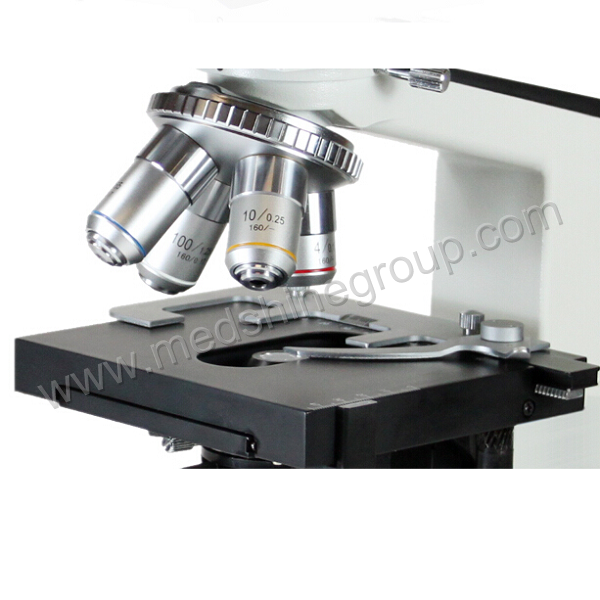

Objective	Plan achromatic PL 4X/0.10
	Plan achromatic PL 10X/0.25
	Plan achromatic PL 40X/0.65(spring)
	Plan achromatic PL 100X/1.25(spring, oil)
Eyepiece tube	Binocular /Trinocular ( 30°inclined)
Focus system	Coaxial coarse and fine adjustment,minimum graduation in fine movement: 2μm
Nosepiece	Quadruple (Fixed nosepiece with outward tilted)
Stage	Double layer mechanical (size:135mm125mm, moving range: 75mm35mm)

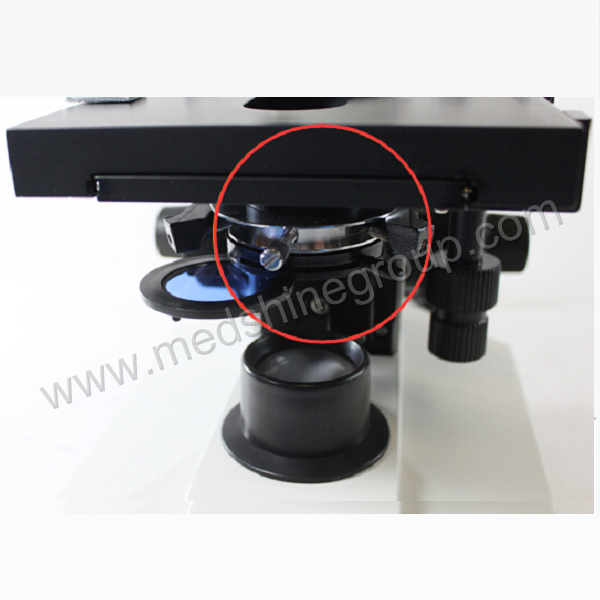

Abbe condenser	N.A.1.25 up and down adjustable
Filter	Blue filter
Condenser	For halogen lamp
Light source	6V 20W halogen lamp, brightness adjustable
