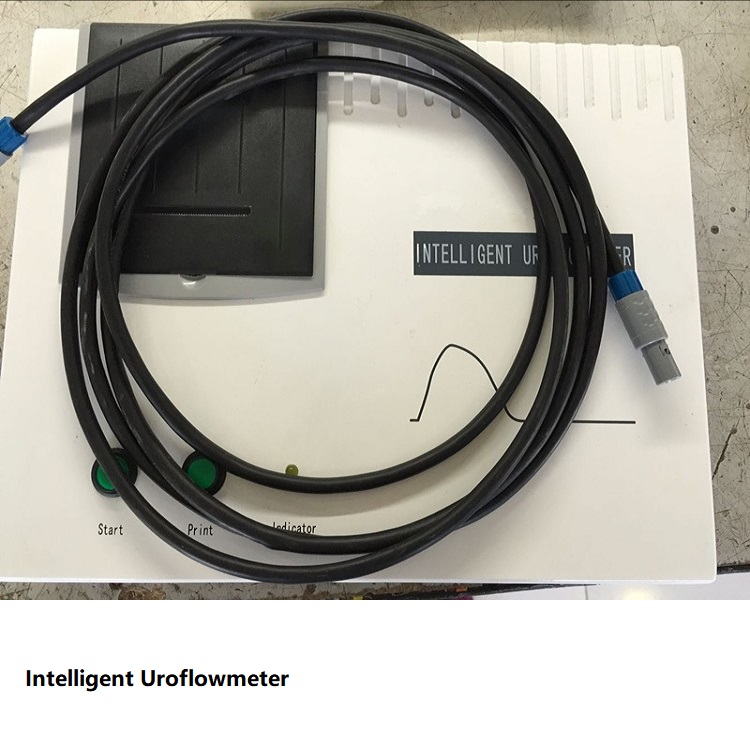

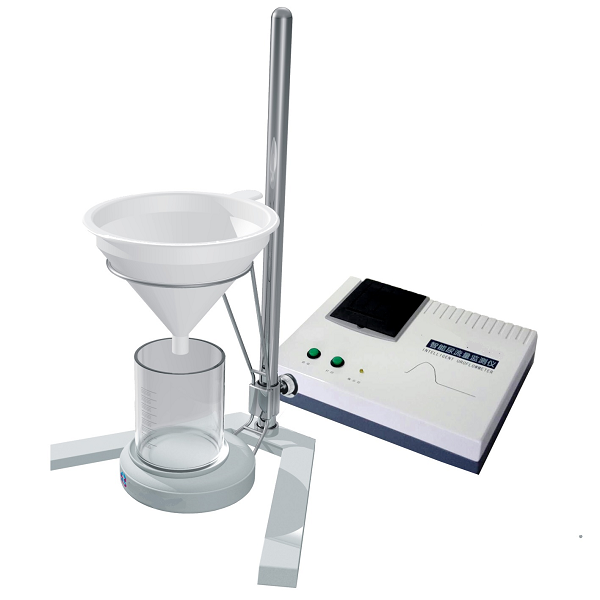

Intelligent Uroflowmeter

Intelligent Uroflowmeter

Function Features

1.Parameters measured automatically, Intelligent start measurement, Exhaustive urine flow rate curve, 2.0 USB interface (for selection)

2.The report is printed automatically.

3.ICS Uroflow Measuring Case History: Curve of Exhaustive Urine Flow Rate, Voided waiting time, Voided time, Urinary flow time, Time elapsed of 10% volume, time elapsed of 95% volume, time of maximal urinary flow, Maximal urinary flow, Average urinary flow, 2 seconds urine flow rate, Voided volume.

4.It has the function of large data storage (for selection).

5.It has the function of data analysis and solution (for selection).

6.We can supply the urine flow rate measuring system of different configuration according to the demand of customer.

Technical Parameters

1.Measuring range of voided volume: 0m-1000mL, error: ≤±1%

2.Measuring range of voided time: 0s-300s, error: ≤±5%

3.Voided waiting time: ≤300s

4.Measuring range of urine flow rate: 0mL/s-50mL/s, error: ≤±1.5mL/s

5.Power supply: a.c. 220V±22V, 50Hz±1Hz

6.Range of environment temperature: 5℃-40℃, Range of relative humidity: ≤80%, Range of atmospheric pressure: 860kPa-1060kPa
