M5L linear palm doppler ultrasound probe

M5L linear palm doppler ultrasound probe

Specifications:

• Scan mode: Electronic Array, Electronic linear array scanning

• Frequency:  linear probe 7.5/10MHz

• Elements: 128 elements

• Scanning Depth: Linear 20-55mm, adjustable

• Field of view: Linear L40

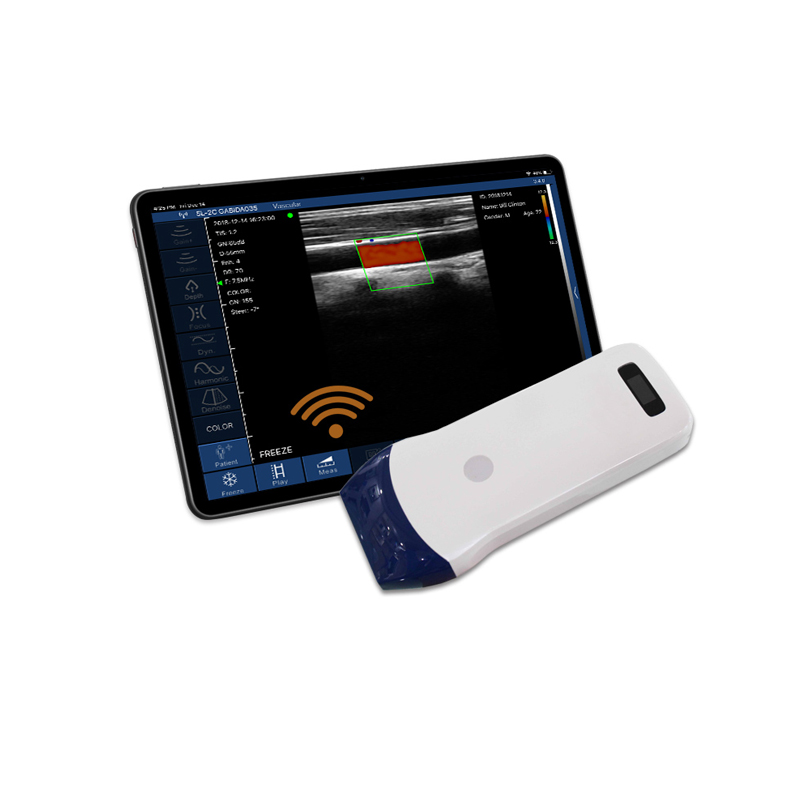

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: Store on mobile phones, Tablet PC

• Measure: distance, area, obstetrics and other

• Power: by built-in lithium battery, 4200mAh

• Battery working time: 3 hours

• Size: 156mm×60mm×20mm

• Net Weight: 250 gram
