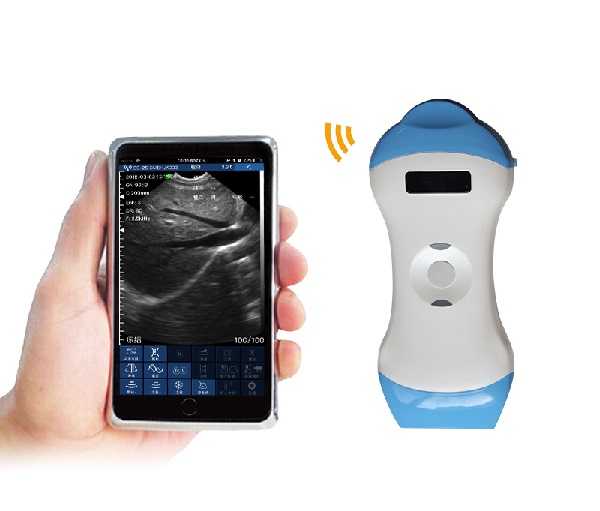

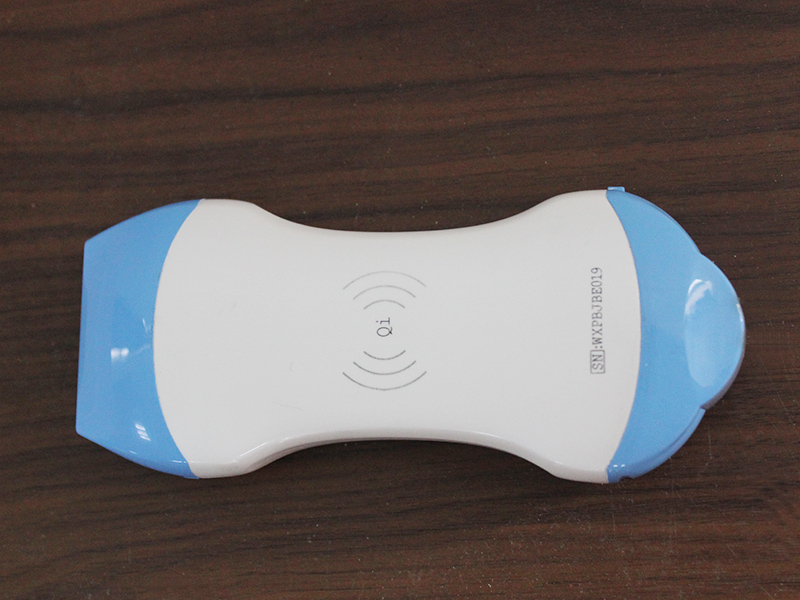

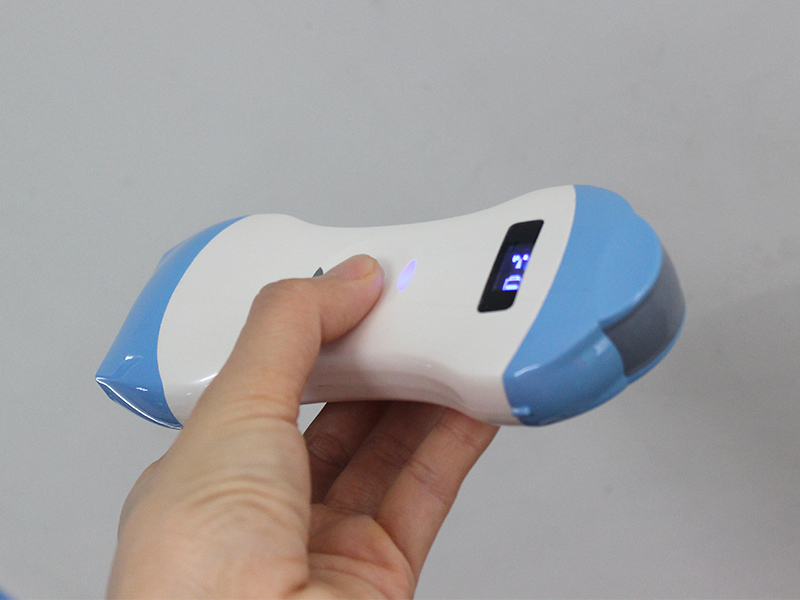

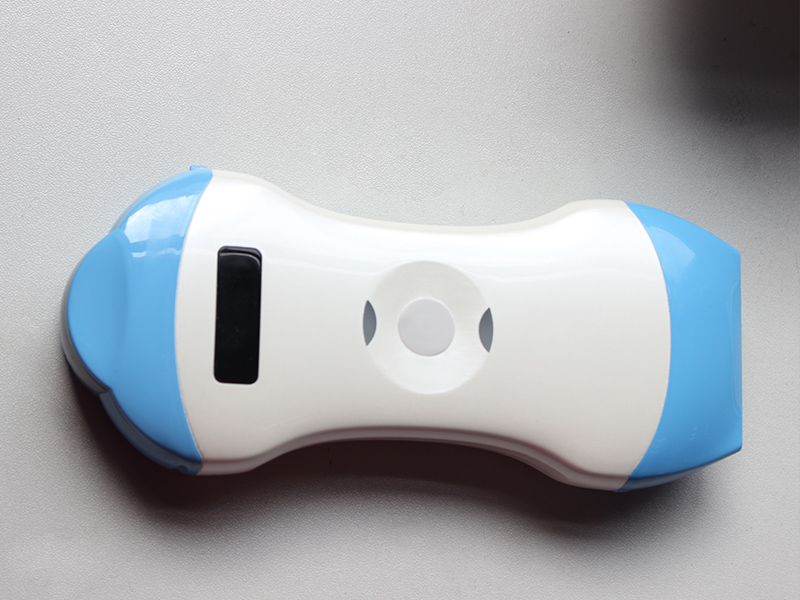

M5ML micro-convex/linear dual-head wireless probe type color doppler ultrasound scanner

M5ML micro-convex/linear dual-head wireless probe type color doppler ultrasound scanner

Specifications:

• Scan mode: Electronic Array, convex with cardiac namely phased array or linear array scanning;

• Frequency:  convex probe 5/7MHz, linear probe 7.5/10MHz

• Elements: 128 elements

• Scanning Depth: Convex 60/90/120/160mm, Linear 20/40/60/80mm, adjustable

• Field of view: Micro-Convex R20, 88°，Linear L40

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M, Color, PDI, PW

•  Frame rate: 18f/s

•  Gain: 30db-105db

•  Dynamic Range: 40/50/60/70/80/90/100/110

•  Noise reduction: 0-1-2-3-4

•  Image gray scale: 256 level

•  Image/Video Storage: Store on mobile phones, Tablet PC

•  Measure: distance, area, obstetrics and other;

•  Power: by built-in lithium battery, 2800mAh

•  Battery working time: 3hours

•  Size/Net Weight: 156mm×60mm×20mm, 250g
