Nitrous Oxide Sedation System

  • M560 Nitrous Oxide Sedation System

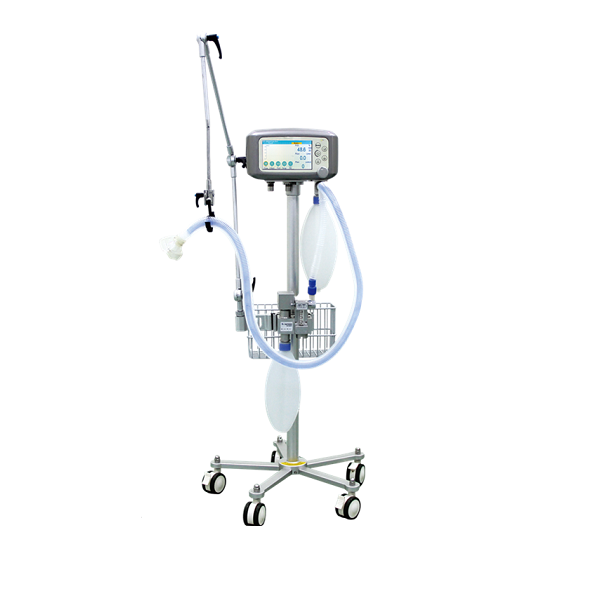

M560 Nitrous Oxide Sedation System

M560 Nitrous Oxide Sedation System

  • Brand: Medshine
  • Model No.: M560
  • Certificate: CE,ISO
  • Warranty:12 months
  • Product description: The N2O Sedation System makes a good performance in gastrointestinal endoscope department, obstetrics department, dentistry department and other departments.
  • INQUIRY

M560 N2O Sedation System/Nitrous Oxide Sedation System

Application:

The N2O Sedation System makes a good performance in gastrointestinal endoscope department, obstetrics department, dentistry department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients, Our N2O Sedation Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

Simplicity: easy to use, easy to move with 4 wheels.

Choice: adapt the equipment to your patients and procedures freely

Designed and manufactured with over 23 years experience in this area.

Flexible configurations to suit your needs.

International standard and advanced technology suitable for wide range use.

Compact interface and big screen give you better operating experience.

Over 2,000 units installed in the world.


Features

TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

Integration breathing circuit design, ensure easy operating and keep tidy.

Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.

Multiple Ventilation mode, suitable for different clinical need.

Electronic control mixed gas blender, high precision adjustment.

Built-in concentration monitoring system, real-time monitoring of airway pressure.


Safety

Three level alarming system, visual and sound alarm information.

With lots of alarming, reminding and protection functions.

Advanced power management control technology.

With built-in backup power source, when outside power source goes off, back-up power source starts to work.


Specifications

Ventilation modes:

Continuous gas supply or On-demand gas supply

Rapid oxygen supply

Manual

Oxygen concentration

30%-100%

N2O concentration

0%-70%

Continuous flow

0-30L/min

Manual ventilation flow

0-30L/min

Rapid oxygen flow

25L/min-75L/min

Monitoring parameters



Oxygen concentration

30%-100%

Airway pressure

0-60cmH2O

Flow

0-30L/min

Graphical display:



P-T(pressure – time)



Size

Wooden case packing sizeL700*W 800*H 420mm , GW40KG ; NW20KG

Wooden case packing sizeL1100*W 160*H 195mm , GW6.7KG ; NW2KG



Alarm and protection

The AC power failure alarm

Power failure or no connection

Internal battery backup low voltage alarm

11.3±0.3V

High oxygen concentration alarm

Low oxygen concentration alarm

31%-100%

30%-99%

High Airway pressure alarm

Pressure limit

Emergency air input

5cmH2O-60cmH2O

               60cmH2O

When machine doesnt work

N2O Closure function

When oxygen pressure 200kPa

Low gas source input pressure

            Pressure 200kPa

Working conditions



Gas source

O2,N2O

Pressure

280kPa-600kPa

Voltage

-220V±22V

Power frequency

50Hz±1Hz

Input power

60VA
