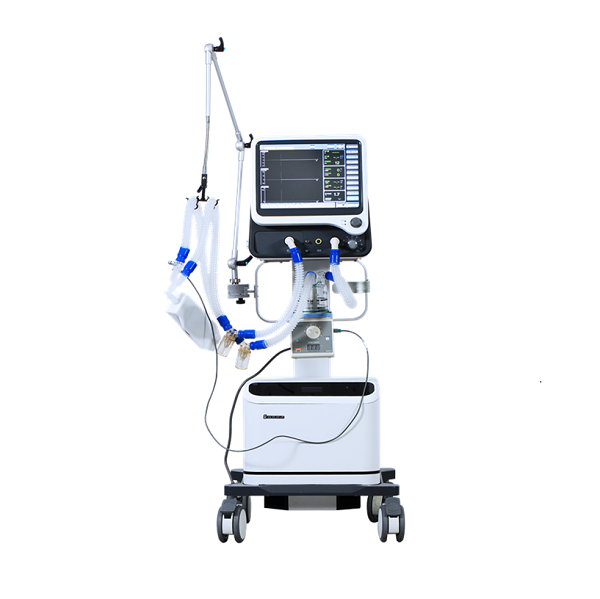

M522 ICU Ventilator

Brand: Medshine
Model No.: M522
Certificate: CE,ISO
Warranty:12 months
Product description: The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenatio
INQUIRY

M522 ICU Ventilator

Application

The ventilator is suitable for various kinds of medical institutions for cardiopulmonary resuscitation respiratory support. Acute respiratory failure caused by various reasons or incomplete oxygenation dysfunction. Indra-operation, post-operation respiratory support, other respiratory treatment.

Features

15” TFT LCD touch screen displays the ventilation parameters, alarm information and waveforms.

Air compressor runs stably with low noise, creates quiet environment for doctors and patients.

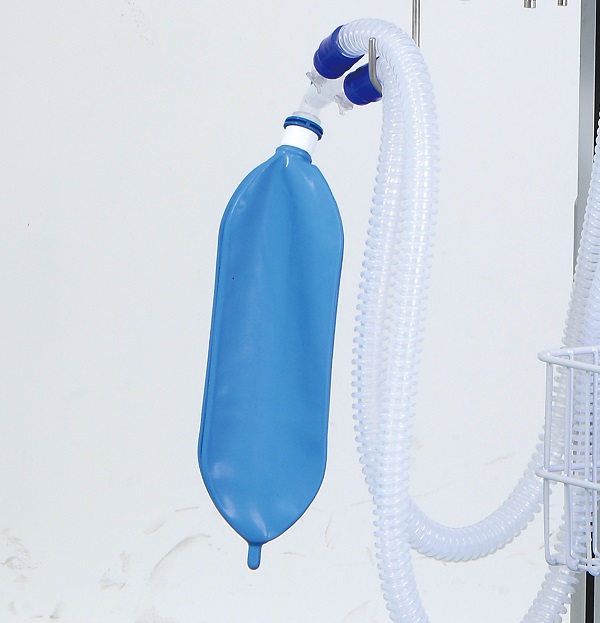

Integration breathing circuit design.

Multiple working modes such as volume control and pressure limit.

Multiple parameters monitoring interface to show clear parameter to the operator, allow operator know the patient conditions in all aspects.

Real time pressure-time, flow-time loop graphics, pressure volume loop graphics and high precision ETCO2, O2 concentration detection function included.

Electrical PEEP control

Breathing valve is disassembly and can be disinfected.

Safety

Three levels alarm system, visual and sound alarm information.

With multiple type of alarms, reminding and protection functions.

Self-check before running, eliminate system mulfuction.

Advanced power management control technology.

With built-in backup power supply, when normal power supply shut down, back-up power supply will start work automatically.

Separate design of electric and gas, keep safety running of ventilator.

Specifications

Ventilation modes:	IPPV, A/C, PCV, P-SIMV-PS, V-SIMV-PS,APRV, PRVC, SPONT/CPAP, PSV, Duolevel
Ventilator parameter ranges
Tidal volume(Vt)	0 ～ 2000mL
Frequency (Freq) Oxygen concentration	1bpm ～ 100 bpm 21%-100%
I/E	4:1～1:8
PEEP	0cmH2O ～ 40 cmH2O
Pressure Limit	20 cmH2O ～ 100 cmH2O
Monitored Parameters
Frequency (Freq)	0 /min ～ 100 /min
Tidal volume(Vt)	0 mL ～ 2500 mL
MV Airway pressure Dynamic lung compliance testing ETCO2 Concentration	0 L/min ～ 99 L/min 0 cmH2O ～ 100 cmH2O 1mL/cmH2O ～ 1000mL/cmH2O 0mmHg ～ 152mmHg (0%-20%)
Oxygen concentration	15 % ～ 100 %
Oscillographs display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
V-T(volume – time )
ETCO2-T (End-tidal CO2 - time)

Alarms and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	≤11.3±0.3V
No tidal volume	No tidal volume within 6s
High Minute Volume alarm Low Minute Volume alarm	5L/min-99L/min 1L/min-30L/min
High Airway pressure alarm Low Airway pressure alarm High oxygen concentration alarm Low oxygen concentration alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O 19%-100% 18%-99%
Continuous pressure alarm	(PEEP+1.5cmH2O) over 16s
Suffocation warning Fan error Oxygen deficit	5-60s Show on screen Show on screen
The maximum limited pressure	＜12.5 kPa

Working conditions
Gas source	O2, AIR
Pressure	280kPa-600kPa
Voltage	～220V±22V
Power frequency	50Hz ± 1Hz
Input power	900VA (with air compressor) 250VA (without air compressor)
