Anaesthetic Machine

  • M510 Anesthesia System
  • M510 Anesthesia System
  • M510 Anesthesia System
  • M510 Anesthesia System
M510 Anesthesia SystemM510 Anesthesia SystemM510 Anesthesia SystemM510 Anesthesia System

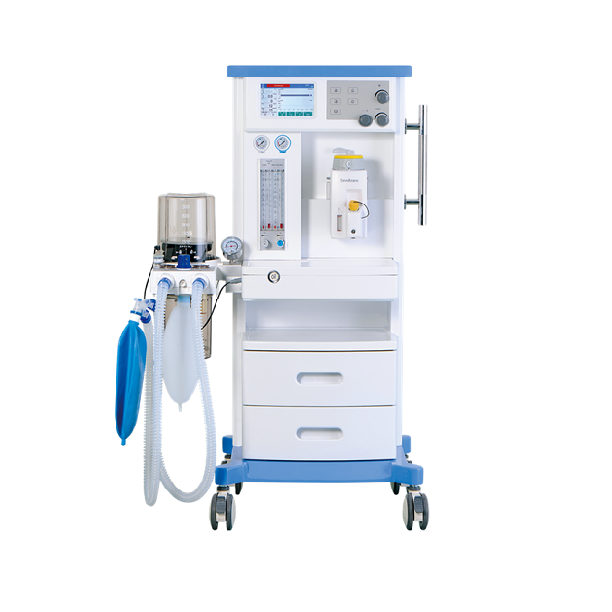

M510 Anesthesia System

  • Brand: Medshine
  • Model No.: M510
  • Certificate: CE,ISO
  • Warranty:18 months
  • Product description: Features 7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform. High precision flow meter, instantly know the fresh gas flow to your patient. Integration bre
  • INQUIRY

M510 Anesthesia System

Application:

The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients,  Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

Simplicity: easy to use, easy to move with 4 wheels.

Choice: adapt the equipment to your patients and procedures freely

Patient Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 3 modes: IPPV; A/C; SIMV.

Designed and manufactured by  Medical with over 23 years experience in this area.

Flexible configurations to suit your needs.

International standard and advanced technology suitable for wide range use.

Compact interface and touch screen give you better operating experience.

Over 2,000 units installed in the world.


Features

7” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

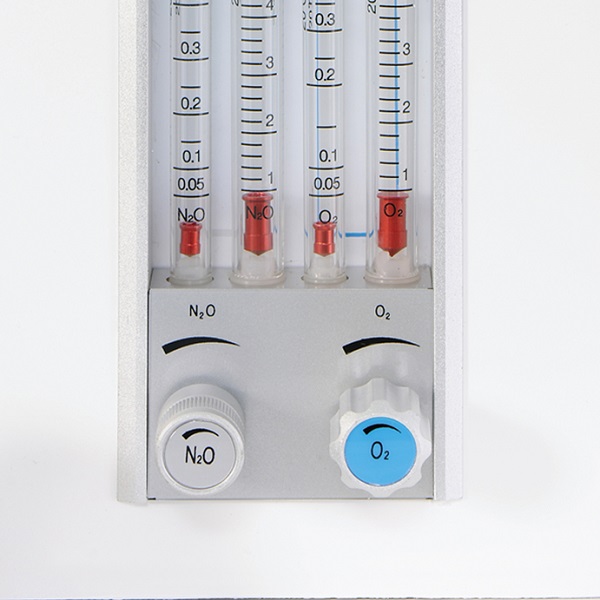

High precision flow meter, instantly know the fresh gas flow to your patient.

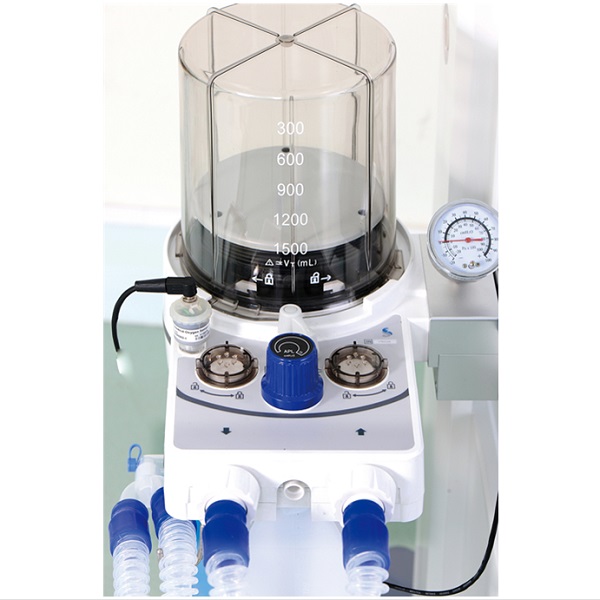

Integration breathing circuit design, ensure easy operating and keep tidy.

Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

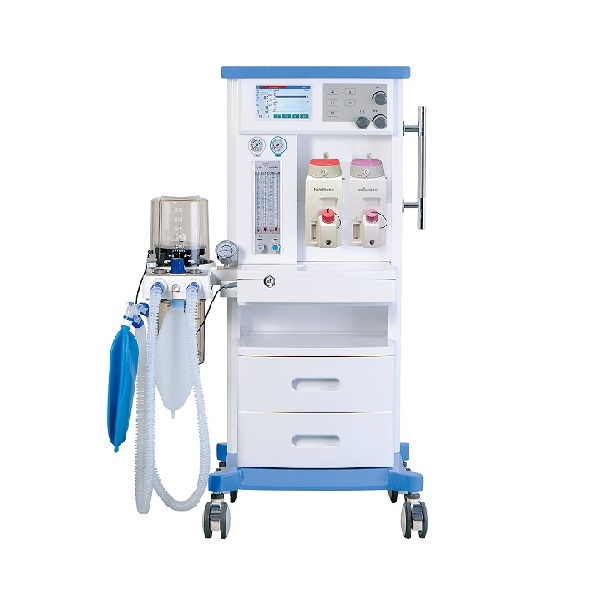

Vaporizer with temperature, flow compensation and self-lock function (M510 can only equipped with one vaporizer), keep safety anytime.

Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

Real time pressure-time, flow-time loop graphics and high precision O2 concentration detection function included.

Vital sign monitor and Anesthetic gas monitor are optional.


Safety

Three level alarming system, visual and sound alarm information.

With lots of alarming, reminding and protection functions.

Advanced power management control technology.

Low O2 pressure alarm and N2O cut-off protection.

Specifications:

Ventilation modes:

IPPV; A/C; SIMV;

Ventilator parameter ranges



Flow meter

O2(0.1-10L/min)



N2O(0.1-10L/min)



AIR(0.1-10L/min)

Rapid oxygen supply

35L/min-75L/min

Tidal volume(Vt)

0, 20 mL 1500 mL

FrequenceFreq

1bpm 100 bpm

I/E

4:11:8

PEEP

0cmH2O 30 cmH2O

Pressure triggering sensitivityPTr

20 cmH2O 0 cmH2OBased on PEEP

Flow trigger sensitivity FTr

0.5 L/min 30 L/min

Pressure control (PC)

5 cmH2O 60 cmH2O

SIGH

0(off)  1/100 5/100

Apnea Ventilation

OFF5 s60 s

Pressure Limit

20 cmH2O 100 cmH2O

Monitored Parameters



FrequenceFreq

0 /min 100 /min

Tidal volume(Vt)

0 mL 2000 mL

MV

0 L/min 100 L/min

Oxygen concentration

15 % 100 %



Graphical display:

Oxygen concentration

Size

Wooden case packing sizeL 560*W 820*H 1450mm , GW104KG ; NW64KG



Alarm and protection

No tidal volume

5Ml within 6s

High oxygen concentration alarm

Low oxygen concentration alarm

19%-100%

18%-99%

High Airway  pressure alarm

Low Airway  pressure alarm

High Minute Volume alarm

Low Minute Volume alarm

Continuous Pressure alarm

20cmH2O-100cmH2O

0cmH2O-20cmH2O

Adult(5L/min-20L/min) Paed(1L/min-15L/min

0-10L/min)

(PEEP+1.5kPa) over 16s

Suffocation warning

5s-60s no spontaneous ventilation

The maximum limited pressure

12.5 kPa

Fan error

Oxygen deficit



Show on screen

Show on screen

Working conditions



Gas source

O2,N2O

Pressure

280kPa-600kPa

Voltage

100-240V

Power frequency

50/60Hz

Input power

40VA

Vaporizer
