POCT Analyzer

  • M123 Quantitative Immunofluorescence Analyzer
  • M123 Quantitative Immunofluorescence Analyzer
  • M123 Quantitative Immunofluorescence Analyzer
  • M123 Quantitative Immunofluorescence Analyzer
  • M123 Quantitative Immunofluorescence Analyzer
M123 Quantitative Immunofluorescence AnalyzerM123 Quantitative Immunofluorescence AnalyzerM123 Quantitative Immunofluorescence AnalyzerM123 Quantitative Immunofluorescence AnalyzerM123 Quantitative Immunofluorescence Analyzer

M123 Quantitative Immunofluorescence Analyzer

  • Brand: Medshine
  • Model No.: M123
  • Certificate: CE,ISO
  • Warranty:12 months
  • Product description: M123 is an advanced on-site analyzer based on immunofluorescence, intending to deliver accurate testing results in minutes merely from 100ul sample. Due to its simple and compact design, M928 is an id
  • INQUIRY

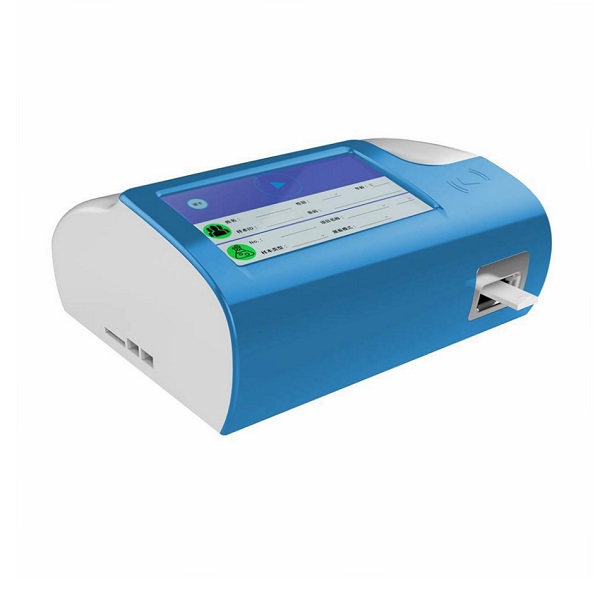

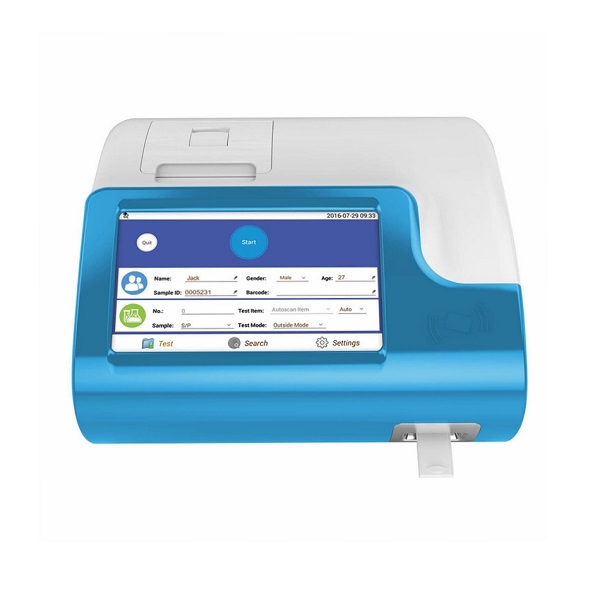

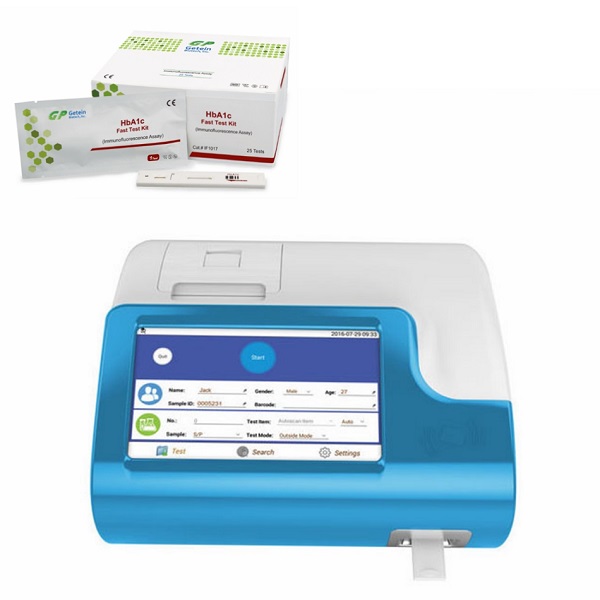

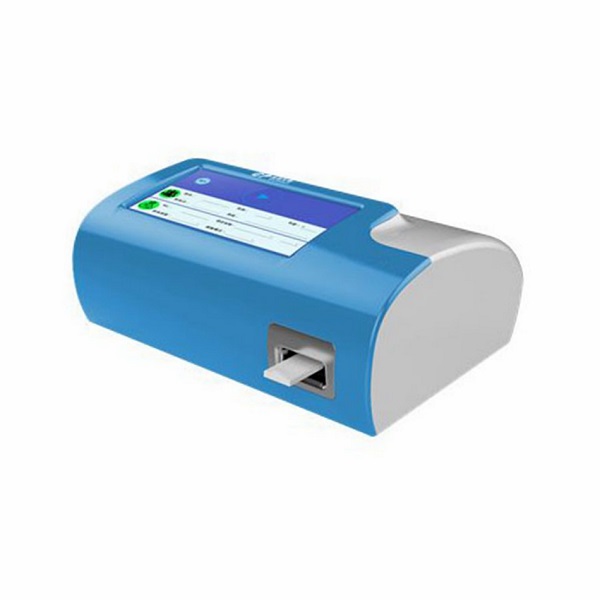

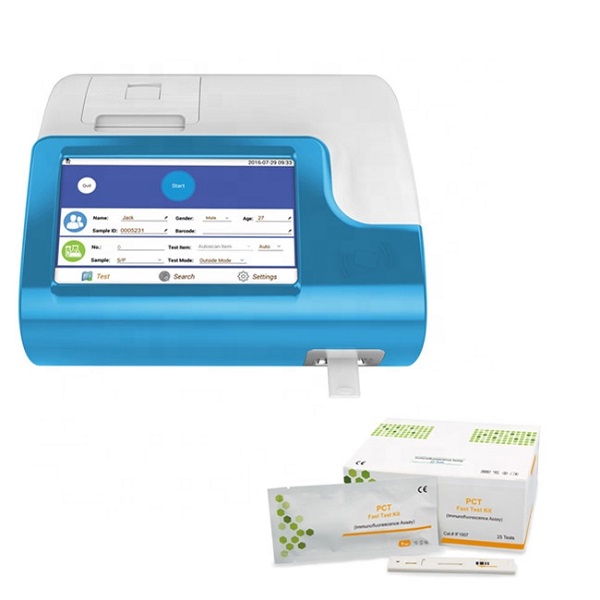

M123 Immunofluorescence Quantitative Analyzer (POCT)



M123 Immunofluorescence Quantitative Analyzer is an advanced on-site diagnostic analyzer, intended to deliver accurate testing results in minutes just from 3-4 drops of human specimens. Thanks to its simple design and small footprint, M123 becomes an ideal system for emergency department, intensive care unit, or anywhere treatment and research needed at the point of care.

HIGHLY EFFICIENT & ACCURATE

Advanced fluorescence immunoassay

Multiple quality control

REAL-TIME AND RAPID TEST

One-step test

3-15 min/test

5sec/test for multiple tests

CONVENIENT OPERATION

SD / RIFD card calibration

Keyboard and mouse connectivity through USB port

Handwriting input available

Continuous test for 3 hours with lithium battery (Optional)

USER-FRIENDLY INTERFACE

Android System

7 Inch touch screen


Product Paramenters

Assay Method

Lateral Flow Chromatograpgy (Immunofluorescence)

Test Result

Quantitative

Language

English/Chinese

Display

7 inch touch screen

Printer

Internal Thermal Printer

Working Environment

Temperature: +15 C ~35 C

Humidity: 10%~85%

Air pressure: 70.0 kPa~106.0 kPa

Power Supply

AC100 V~AC240 V, 50 Hz~60 Hz, 60 VA

Data Storage

10,000 data (Max)

Dimensions

261 mm×241 mm×115 mm (D×W×H)

Weight

1.9 KG
