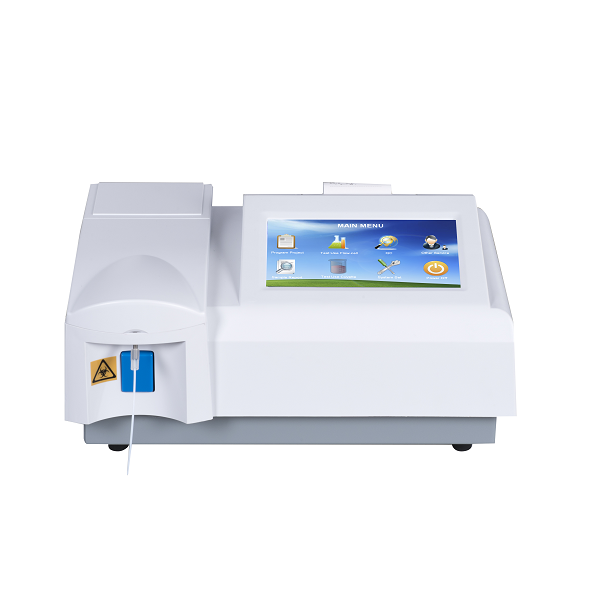

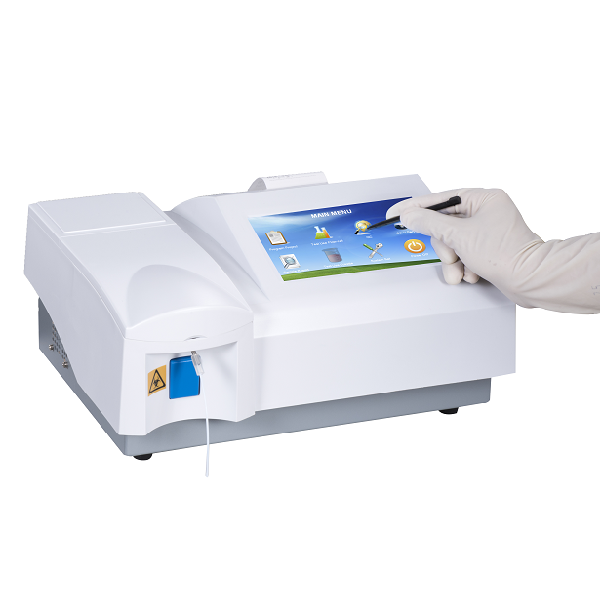

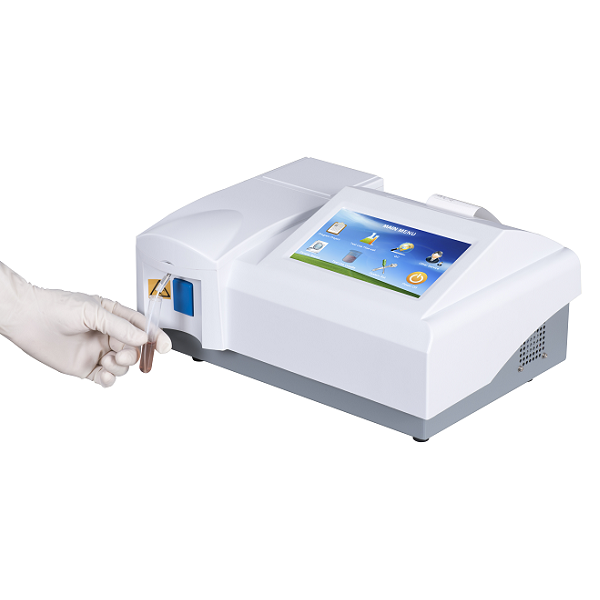

M100 Semi Auto Chemistry Analyzer

M100 Semi Auto Chemistry Analyzer

Feature

• 7 inch Color LCD , Touch screen
• Flow cell and Cuvette test mode compatible
• Real time curve showing
• 7 wavelength , 90 test item pre-programmed
• Memory for 10,000 sample results
• Light source hibernate function making lamp life longer
• RS232 interface, PC connecting

Specification

Test mode: Kinetic, End point, Two point, Absorbance

Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position

Wavelength precision: ±2 nm, width ≤ 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs

carry over: < 1%

Repeatability CV: < 1%

Incubator: 37℃、30℃、25℃、Precision : ±0.1℃

Sample volume: 0~3000 uL (≥500uL recommend)

Data Storage: ≥10000

Quality control curve: 、SD、CV%、L-J quality control curve for every test item

Flow cell: 32 uL quartz glass, 10 mm

Lamp: Philips 6V 10W Halogen Lamp with long life

Screen: 7 inch color LCD

CPU: ARM series high speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%

Power supply: 100~240VAC，50-60Hz，100VA

Dimension: 340(L)*270(W)*160(H)

Weight: 5 kg

Usual test list

Liver function:

ALT  AST  ALP  T-BIL  D-BIL  TP  ALB  TTT  CHE  Nh3

Renal function :

BUN  CRE  UA  URE  CO2-CP  γ-GT

Lipids:

T-CHO  TG  HDL-C  LDL-C

Cardiac function:

CK  CK-MB  LDH

Immune proteins:

IGA  IGG  IGM  C3

Others:

GLU  HGB  AMS
