Color Ultrasound

M221A 3 in 1 Wireless Ultrasound Sonography

M221A 3 in 1 Wireless Ultrasound Sonography

Brand: Medshine
Model No.: M221A
Certificate: CE,ISO
Warranty:18 months
Product description: M221A is new designed ultrasound probe can both use WIFI and USB,can use wireless charging board to charge very convenient and portable carry,can realized Convex+Linear+Cardiac scan.
INQUIRY

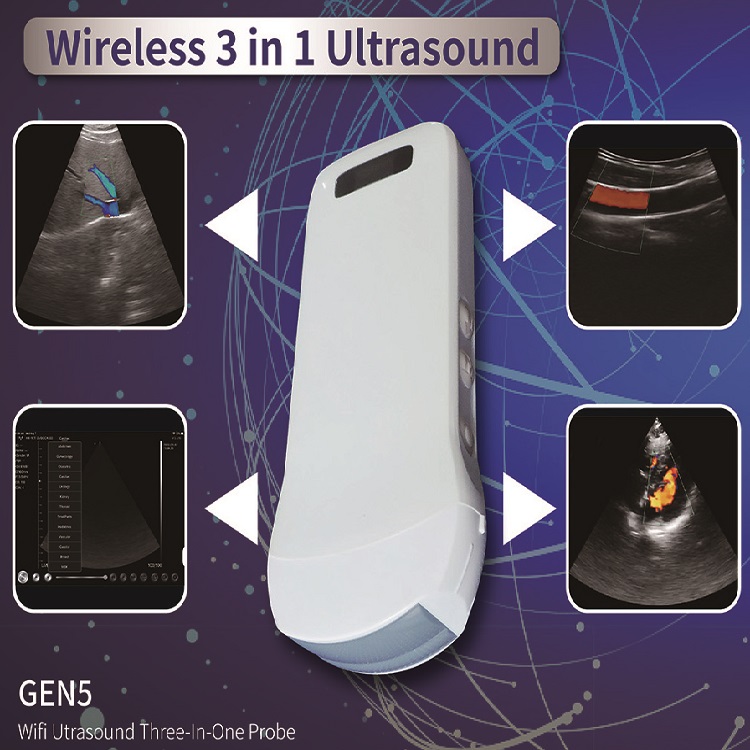

M221A 3 in 1 wireless ultrasound sonography

This types machine is 3 in 1 probe , include the convex probe , linear probe and cardiac probe. No need change the probe head , only change from the software , then you can realize change the probe .

Features:

· 3 in 1 : convex + linear+cardiac probe

· wifi types , easy to clean and disinfect

· multi software : ios , android and windows .

· software upgrad lifetime free

· Invention of the first! exclusive patent !

· Exceptional image quality

· OEM/ODM

Specification

Probe	Convex probe, linear probe , cardiac probe
Frequency	convex probe : 3.5/5.0mhz linear probe :7.5/10mhz cardiac probe :3.5/5.0mhz
Depth	convex probe:90-305mm linear probe:20-80mm cardiac probe:90-160mm
Host	IOS,Android,Windows
Connection	802.11.n WIFI(AP)
Playback frames	100, 200, 500, 1000 optional
Throughout	150Mbit/s
Field of view	80 degree
Display mode	B, B/M, color, PW, PDI
Image gray scale	256 level
channel	64
Frame	24s/f
Gain	40-110Db
Language	English, Russian, German, Italian, Spanish, Portuguese
Power	by built-in battery
Power consumption	4W (probe run) /1.5W (probe stop)
Battery Replaceable	Yes
Battery last	3 hours(working time), More than 5 hours(stand by time)
Machine Radius	R45
Machine Size	157(h)x70(w)x30(d) mm
Package Size	240(h)x235(w)x100(d) mm
Weight	227gram
